TRAKETCH® adhesiveVENTpads made by SABEU

The "firewall" for sensitive electronics, packaging and medical applications

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

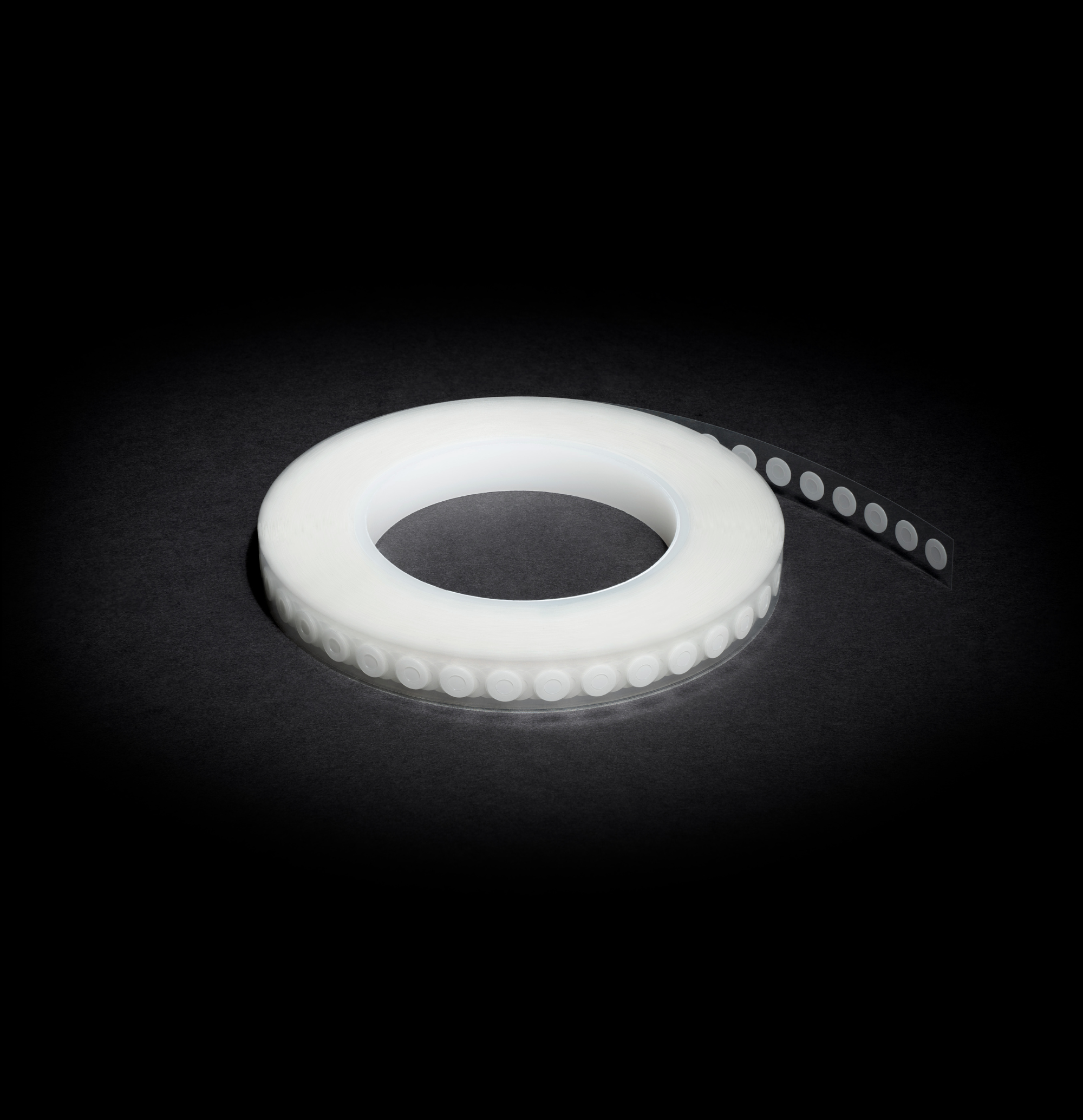

From electronic components in cars to smartphone housing components, TRAKETCH® adhesiveVENTpads from SABEU are smart little helpers made of plastic membranes which protect sensitive components and help them last longer. Our self-adhesive membrane pads compensate for differences in pressure and prevent undesired particles from passing through. Discover our broad range of self-adhesive membrane pads for a wide variety of different applications here!

Scope of application

Self-adhesive membrane pads from SABEU are available in six standard sizes. Our specially developed TRAKETCH® technology enables us to adapt self-adhesive membrane pads to suit the individual needs of our customers.

It's all in the detail: Our self-adhesive membrane pads are made of hydrophobic and oleophobic membranes which guarantee the air flow rate while also reliably retaining moisture and dirt. As a result, TRAKETCH® adhesiveVENTpads are ideal for use in highly sensitive electronics and many other applications. Thanks to specially selected adhesives, our self-adhesive membrane pads stick to a range of different materials, like plastic, aluminum and steel. They can be applied manually, semi-automatically or fully automatically.

Like all our TRAKETCH® Membranes, the membrane variants used in pressure-compensation elements also meet the legal requirements of the REACH regulations and are also PFOA-free (confirmed by accredited laboratories).

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

Benefits of our self-adhesive membrane pads

  • Available in six standard sizes
  • Individually customizable (membrane parameters, membrane materials and adhesive types)
  • Reliable protection against environmental effects like moisture and foreign particles
  • Smart pressure compensation, steady airflow and continuous, reliable venting
  • Oil- and water-repellent surface (PFOA-free)
  • Excellent adhesion to plastic, aluminum, steel and many other materials
  • Can be applied manually, semi-automatically or fully automatically
  • Minimal space requirements (small, flat design less than 0.3 mm thick)
  • Easy integration into products (including existing products)
  • Self-adhesive membrane pads can be installed either inside or outside the component
  • Easy replacement
  • Suitable for IP protection classes

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

How adhesiveVENTpads work

Self-adhesive membrane pads, often simply referred to as membrane pads, combine multiple features to increase the reliability and durability of products. They protect housing and components in a wide variety of different applications.

Here's how it works: We integrate microporous TRAKETCH® filter membranes featuring completely even pore distribution and minimal tolerance ranges into the small, circular self-adhesive membrane pads. The diameters of these pores can be precisely defined thanks to heavy ion bombardment and chemical etching. As a result, membrane pads from SABEU ensure an especially consistent air flow rate while also retaining particles.

Customer voice

FAZUA GmbH
Germany

"In our partnership with SABEU, we appreciate their solution-oriented approach of the highly qualified team. They are proactive and consistent with high quality standards, enabling swift and timely realization of our projects and requests.
Video

Smart Battery Solutions GmbH
Germany

"We are impressed with the proactive and comprehensive consultation, based on a holistic approach ensuring a smooth process and quality products. We are greeted with timely responses and always meet set timelines.“

TRAKETCH® adhesiveVENTpads and FAZUA Drive Systems (Porsche eBike Performance GmbH) | Application use case

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

TRAKETCH® adhesiveVENTpad product portfolio

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D5.0/2.0 TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D5.0/2.0

TRAKETCH®
adhesiveVENTpad
PET 0.4 D5.0/2.0

Item Number: 090 065

Material: Non supported Polyester (PET)
membrane with modified adhesive

Dimensions:
Ø O (Outer) = 5.0 mm
Ø I (Inner) = 2.0 mm
Thickness = < 0.3 mm
Liner width = 14 mm
Quantity per role = 7,000 Pads

MOQ = 1,000 Pads

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D5.0/2.0 In stock

 | Request now >

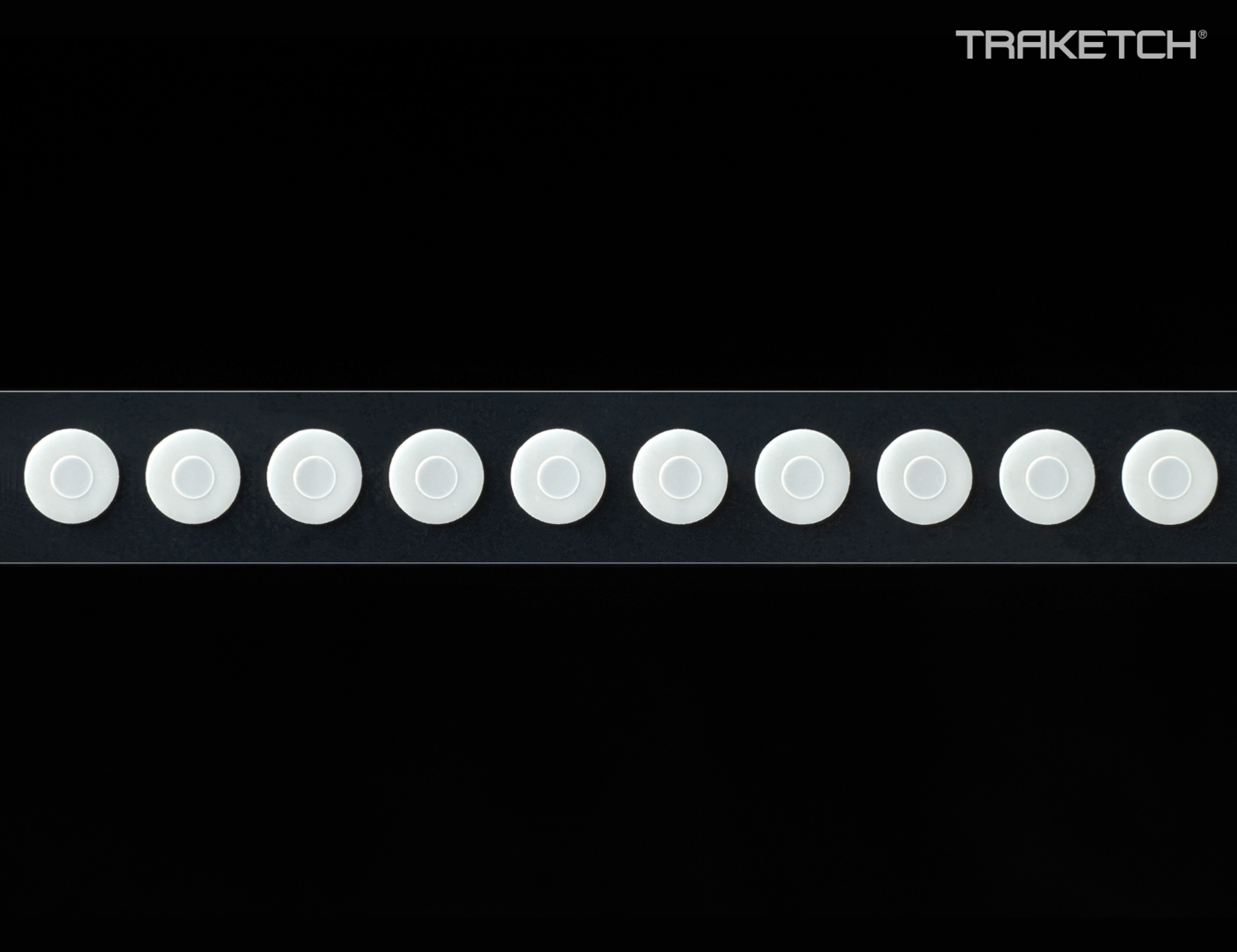

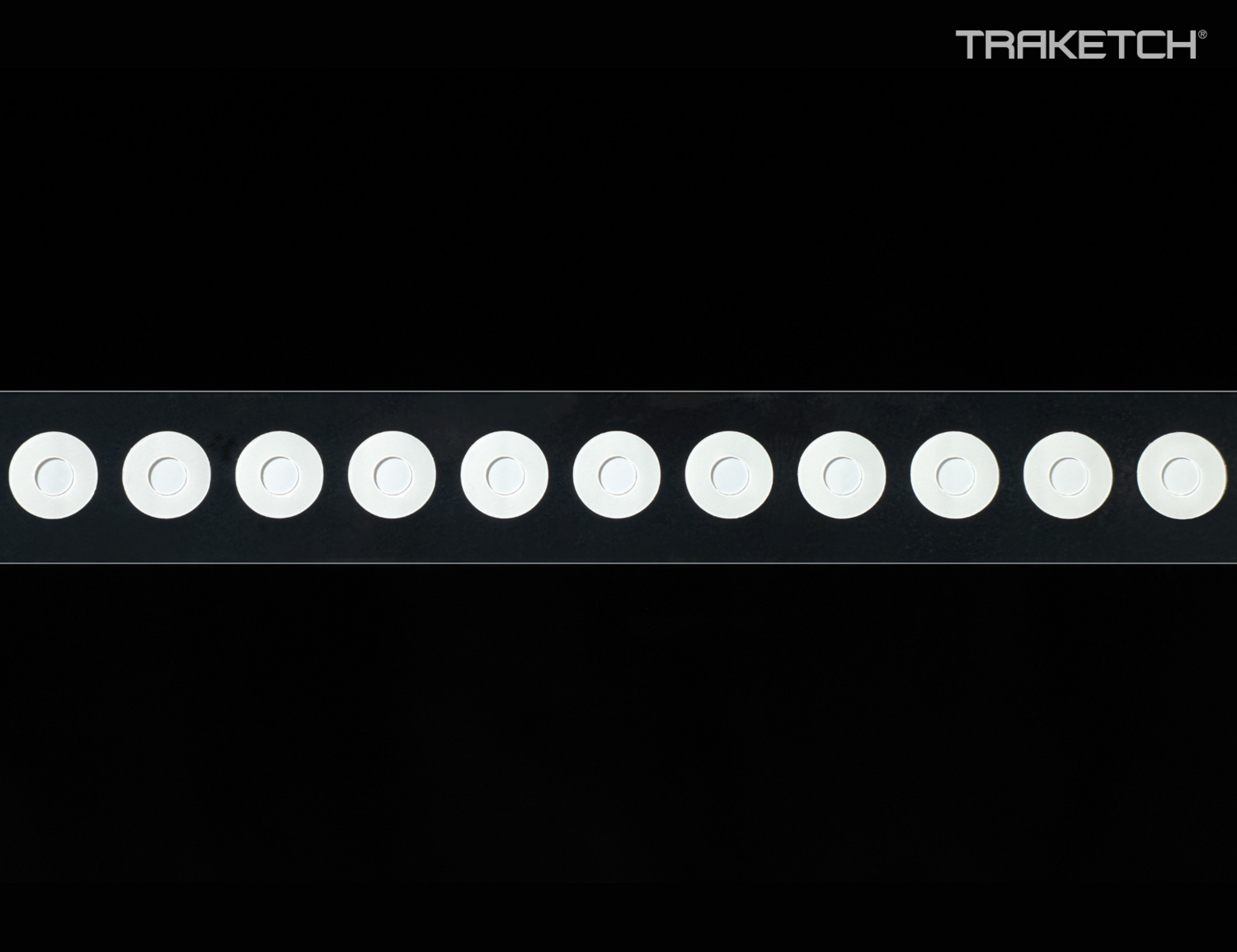

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D7.0/3.0 TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D7.0/3.0

TRAKETCH®
adhesiveVENTpad
PET 0.4 D7.0/3.0

Item Number: 090 067

Material: Non supported Polyester (PET)
membrane with modified adhesive

Dimensions:
Ø O (Outer) = 7.0 mm
Ø I (Inner) = 3.0 mm
Thickness = < 0.3 mm
Liner width = 14 mm
Quantity per role = 5,000 Pads

MOQ = 1,000 Pads

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D7.0/3.0 In stock

 | Request now >

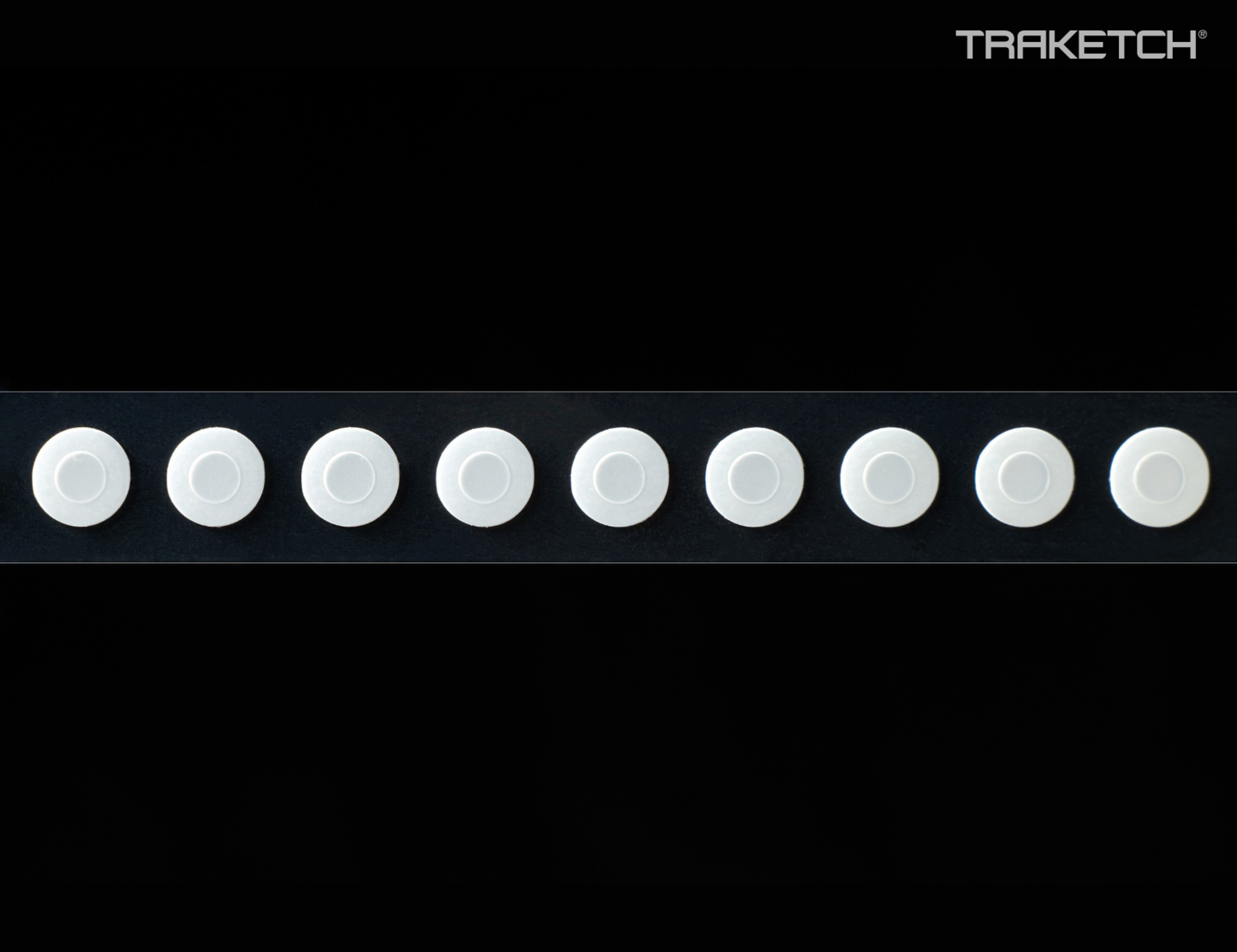

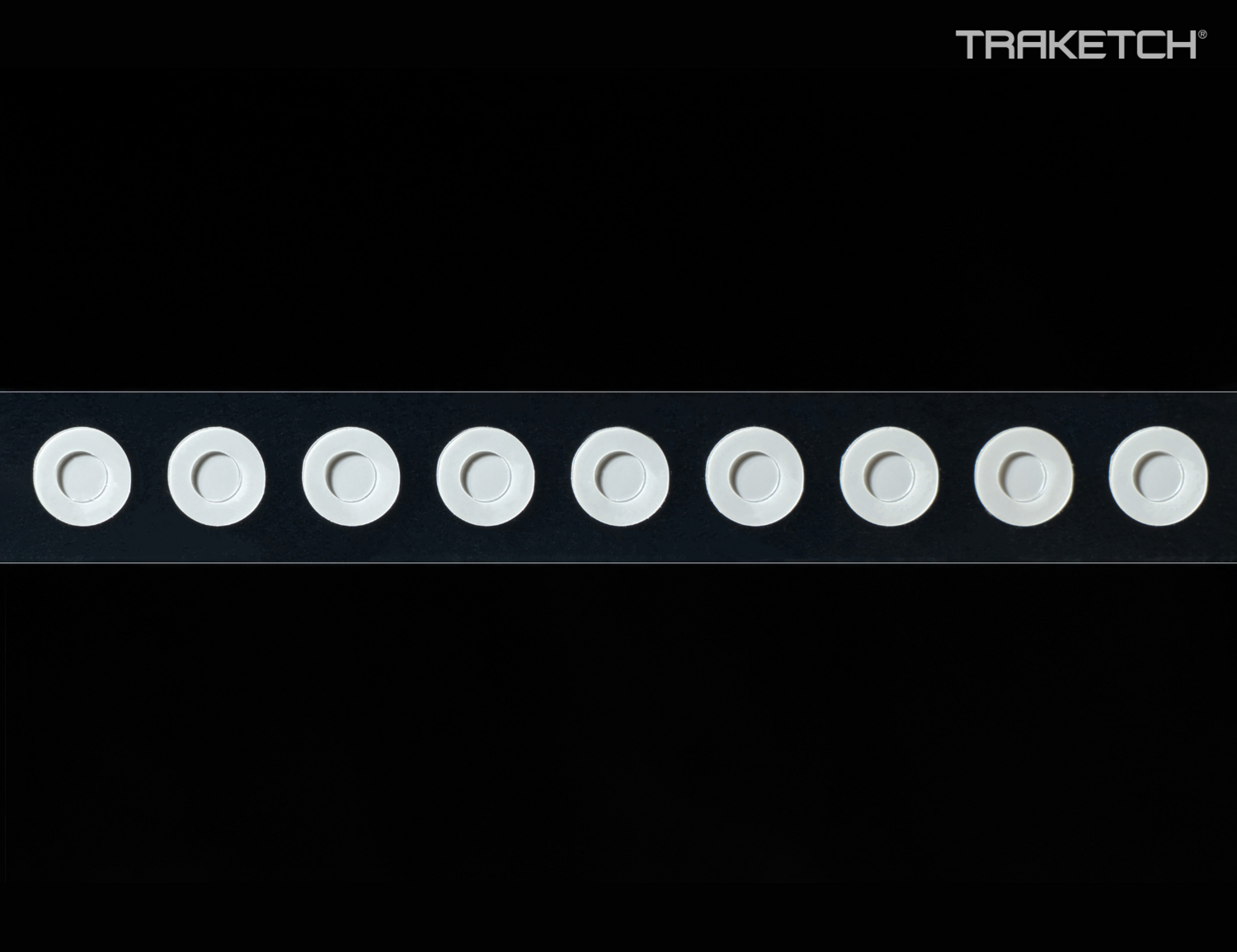

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D8.0/4.0 TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D8.0/4.0

TRAKETCH®
adhesiveVENTpad
PET 0.4 D8.0/4.0

Item Number: 090 071

Material: Non supported Polyester (PET)
membrane with modified adhesive

Dimensions:
Ø O (Outer) = 8.0 mm
Ø I (Inner) = 4.0 mm
Thickness = < 0.3 mm
Liner width = 14 mm
Quantity per role = 5,000 Pads

MOQ = 1,000 Pads

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D8.0/4.0 Upon request

 | Request now >

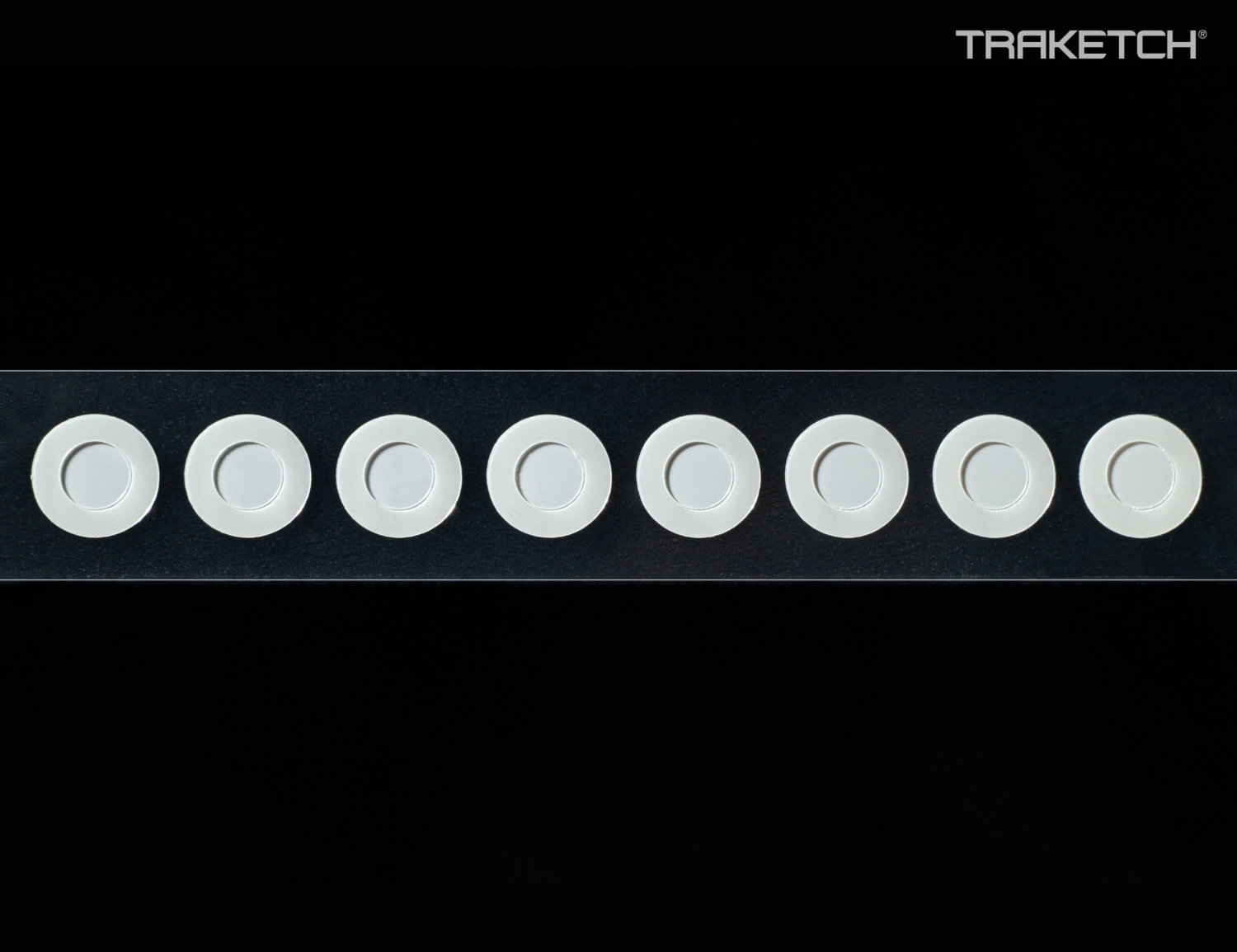

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D10.0/5.5 TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D10.0/5.5

TRAKETCH®
adhesiveVENTpad
PET 0.4 D10.0/5.5

Item Number: 090 068

Material: Non supported Polyester (PET)
membrane with modified adhesive

Dimensions:
Ø O (Outer) = 10.0 mm
Ø I (Inner) = 5.5 mm
Thickness = < 0.3 mm
Liner width = 17 mm
Quantity per role = 4,000 Pads

MOQ = 1,000 Pads

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D10.0/5.5 In stock

 | Request now >

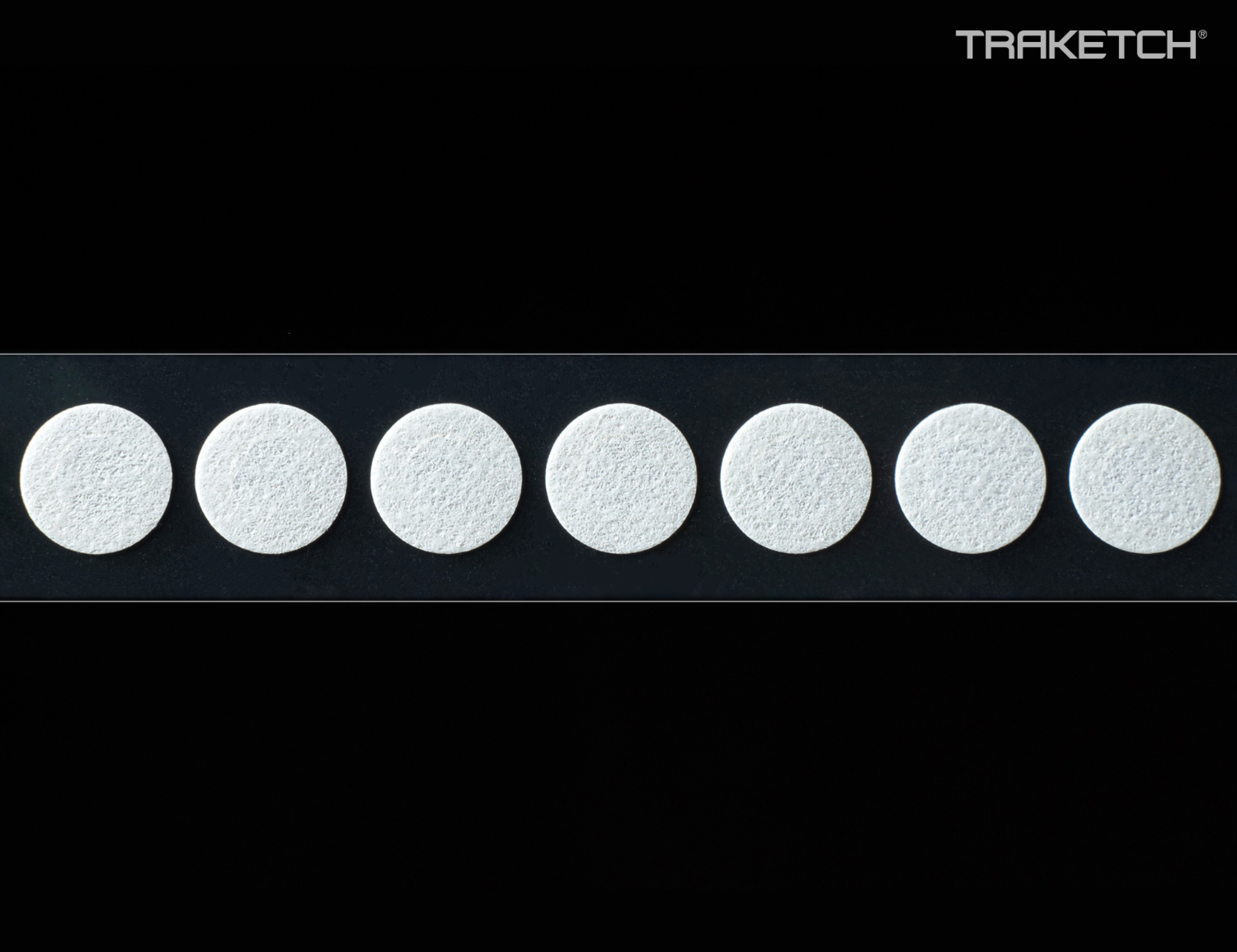

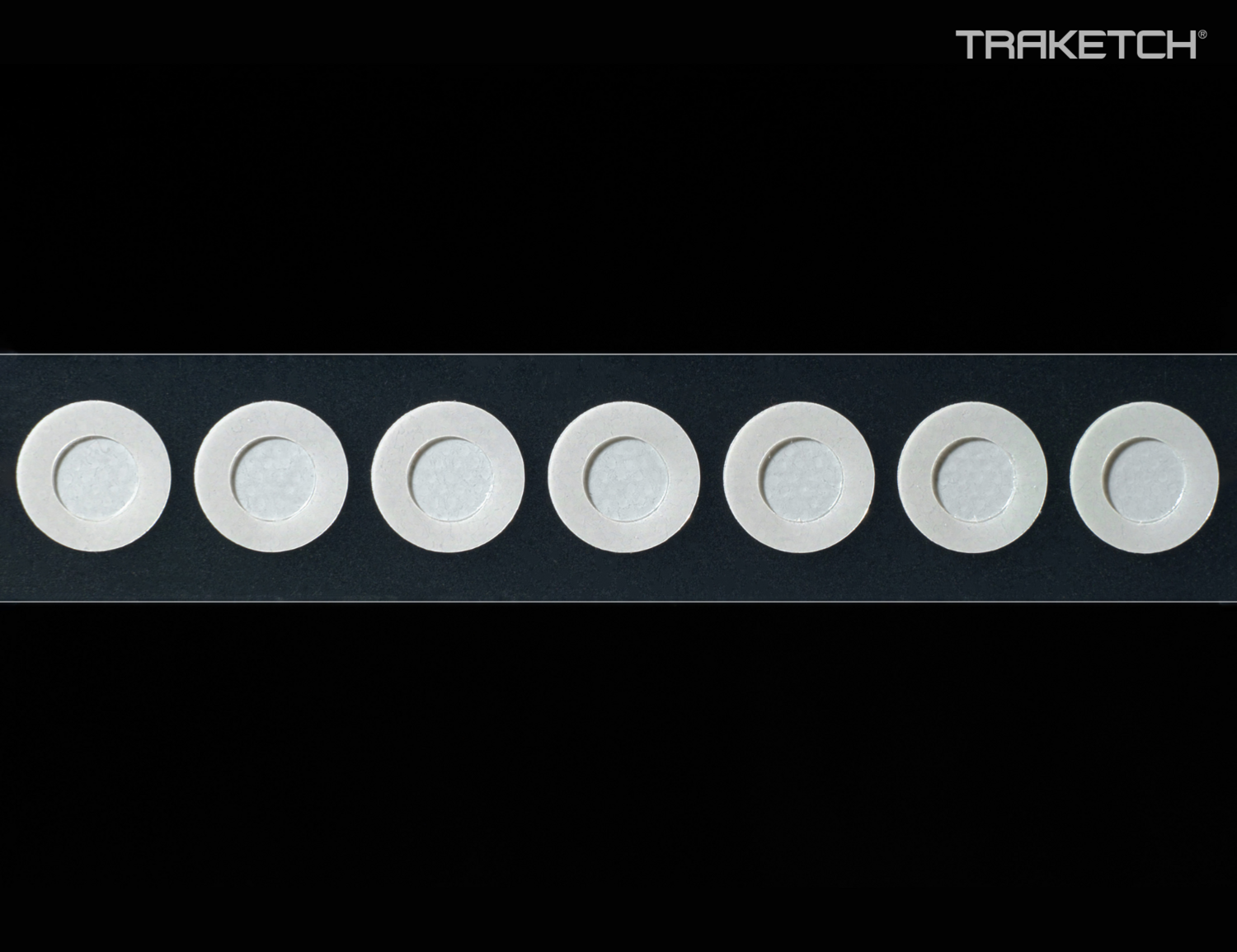

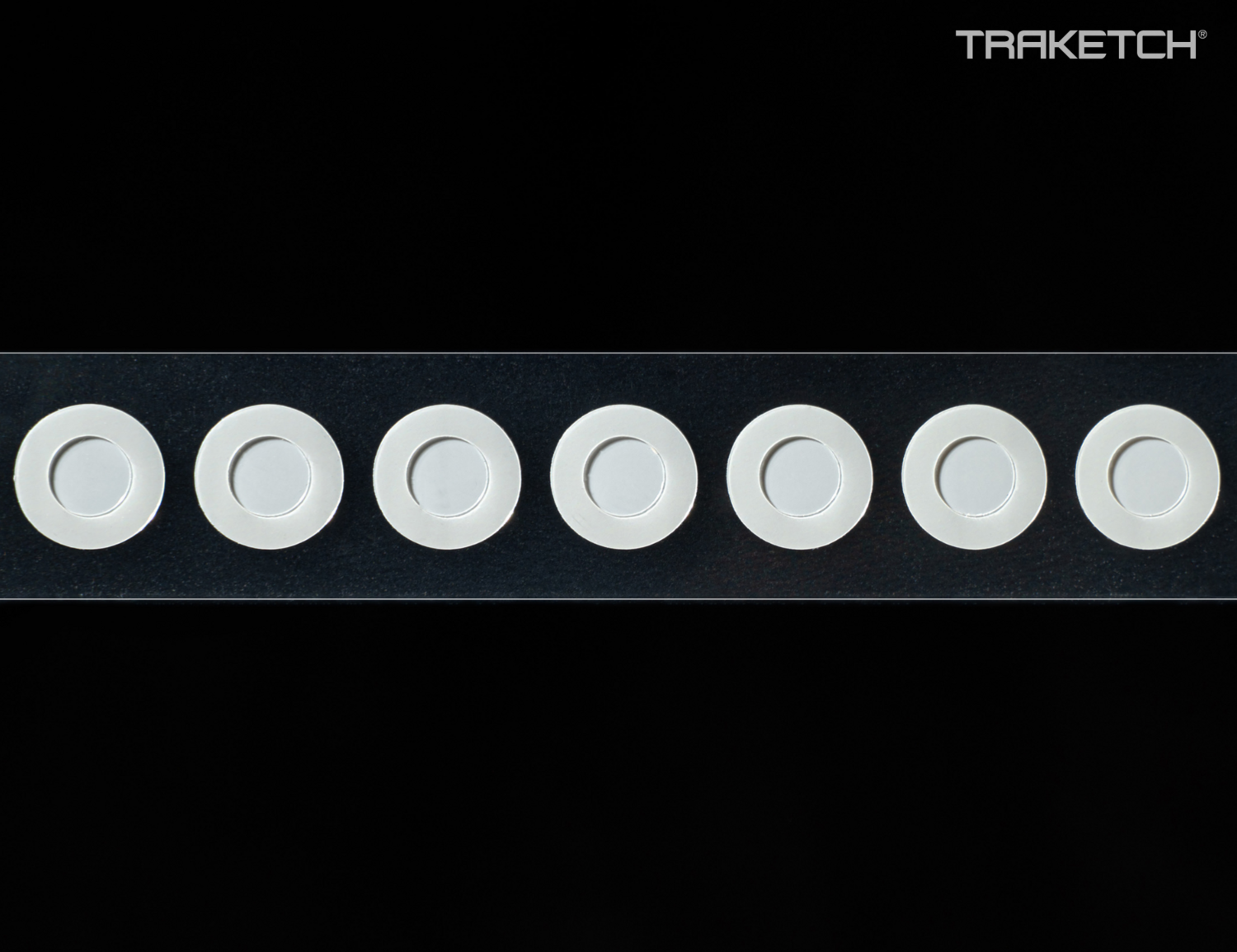

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D12.7/7.1 TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D12.7/7.1

TRAKETCH®
adhesiveVENTpad
PET 0.4 D12.7/7.1

Item Number: 090 072

Material: Non supported Polyester (PET)
membrane with modified adhesive

Dimensions:
Ø O (Outer) = 12.7 mm
Ø I (Inner) = 7.1 mm
Thickness = < 0.3 mm
Liner width = 21 mm
Quantity per role = 3,000 Pads

MOQ = 1,000 Pads

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D12.7/7.1 In stock

 | Request now >

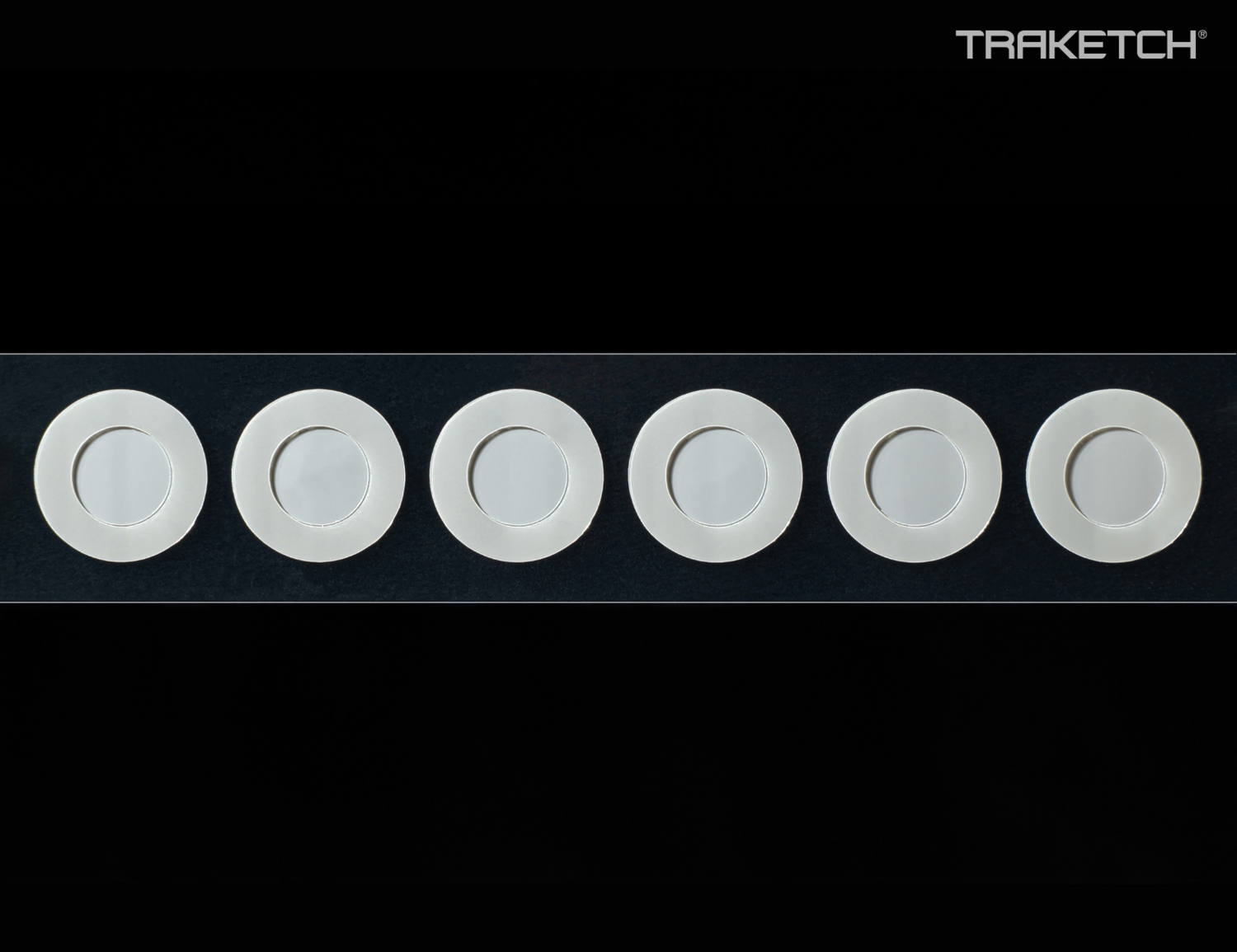

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D14.0/8.0 TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D14.0/8.0

TRAKETCH®
adhesiveVENTpad
PET 0.4 D14.0/8.0

Item Number: 090 069

Material: Non supported Polyester (PET)
membrane with modified adhesive

Dimensions:
Ø O (Outer) = 14.0 mm
Ø I (Inner) = 8.0 mm
Thickness = < 0.3 mm
Liner width = 21 mm
Quantity per role = 3,000 Pads

MOQ = 1,000 Pads

TRAKETCH<sup>®</sup><br>adhesiveVENTpad<br>PET 0.4 D14.0/8.0 In stock

 | Request now >

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

Further venting and pressure compensation elements

Venting & pressure
compensation elements

Self-adhesive, welded-on TRAKETCH® Membranes or those over-molded with plastic components as pressure compensation elements prevent damaging pressure variations, retain unwanted particles and ensure continuous venting – also sterile upon request.

FLUXX®
Degassing Inserts

Pressure compensation membranes in our FLUXX® Degassing Inserts ensure continuous venting in for example various containers

FLUXX®
Vented Caps

Our FLUXX® Vented Caps safely seal containers and at the same time ensure continuous venting using the integrated membranes

Tailor-made TRAKETCH® solutions as OEM-supplier

Certifications and conformities

USP Class VI bio compatible

ISO Class 8 clean room manufacturing

EU food conformity

FDA conformity
