Membrane Product portfolio
TRAKETCH® Membranes made by SABEU are available in a wide range of materials, designs and formats. In addition to the following standard product portfolio > we also offer various customization options >.
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Self-adhesive
Membrane Pads
Self-adhesive Membrane Pads offer the advantage of quick and simple installation even in components with limited processing space.

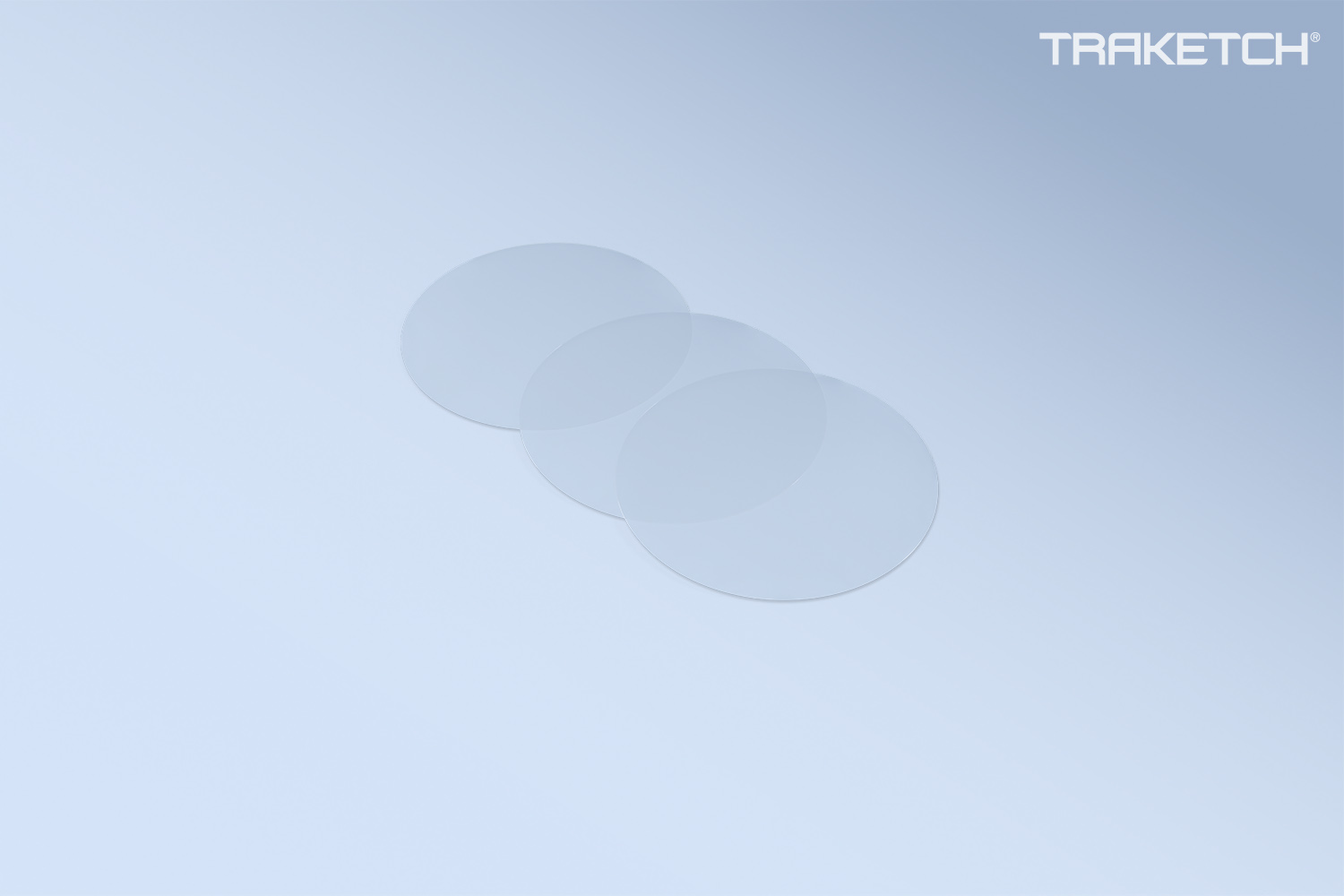

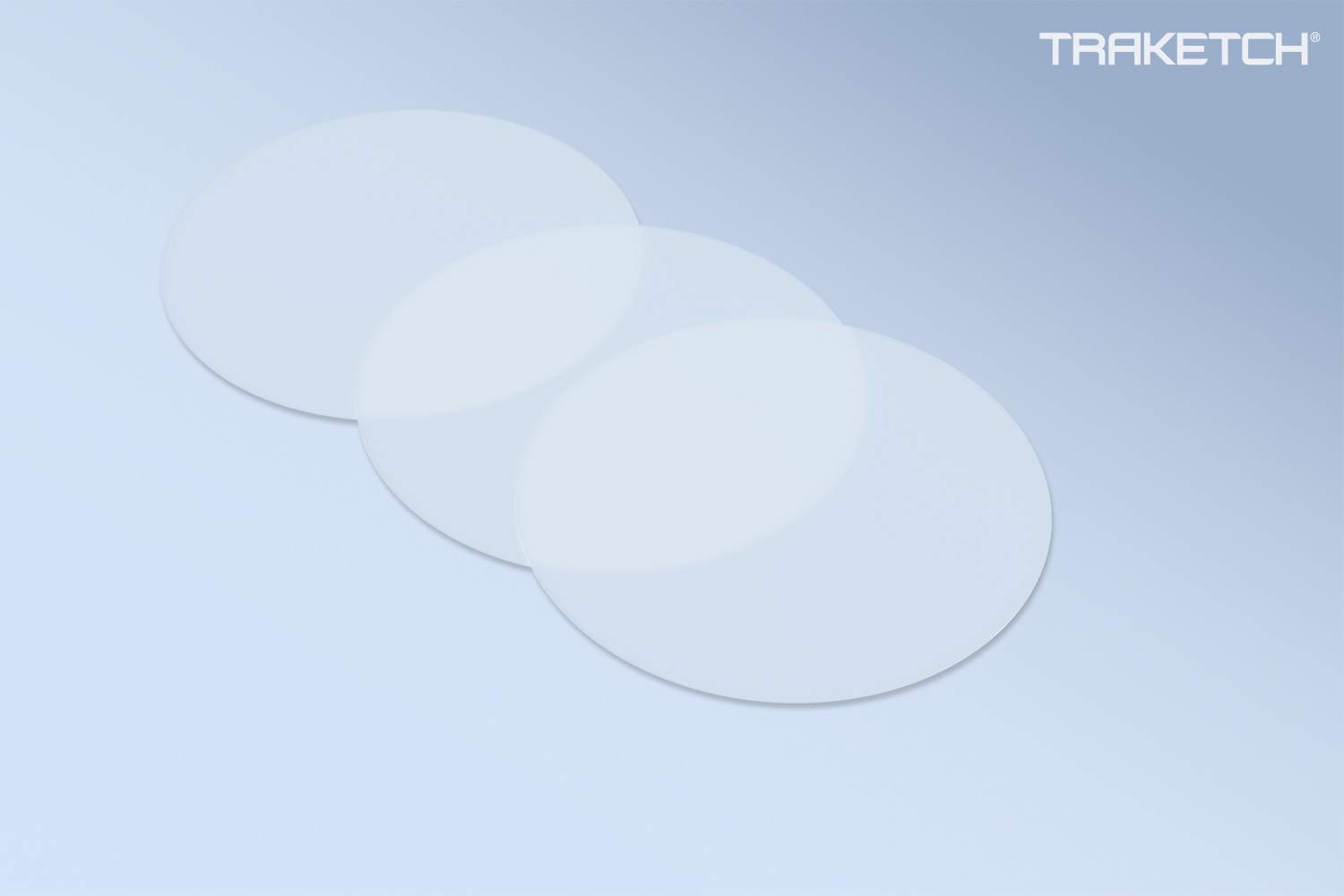

Membrane
Discs
Discs with defined diameters are already designed for immediate processing and assembly.

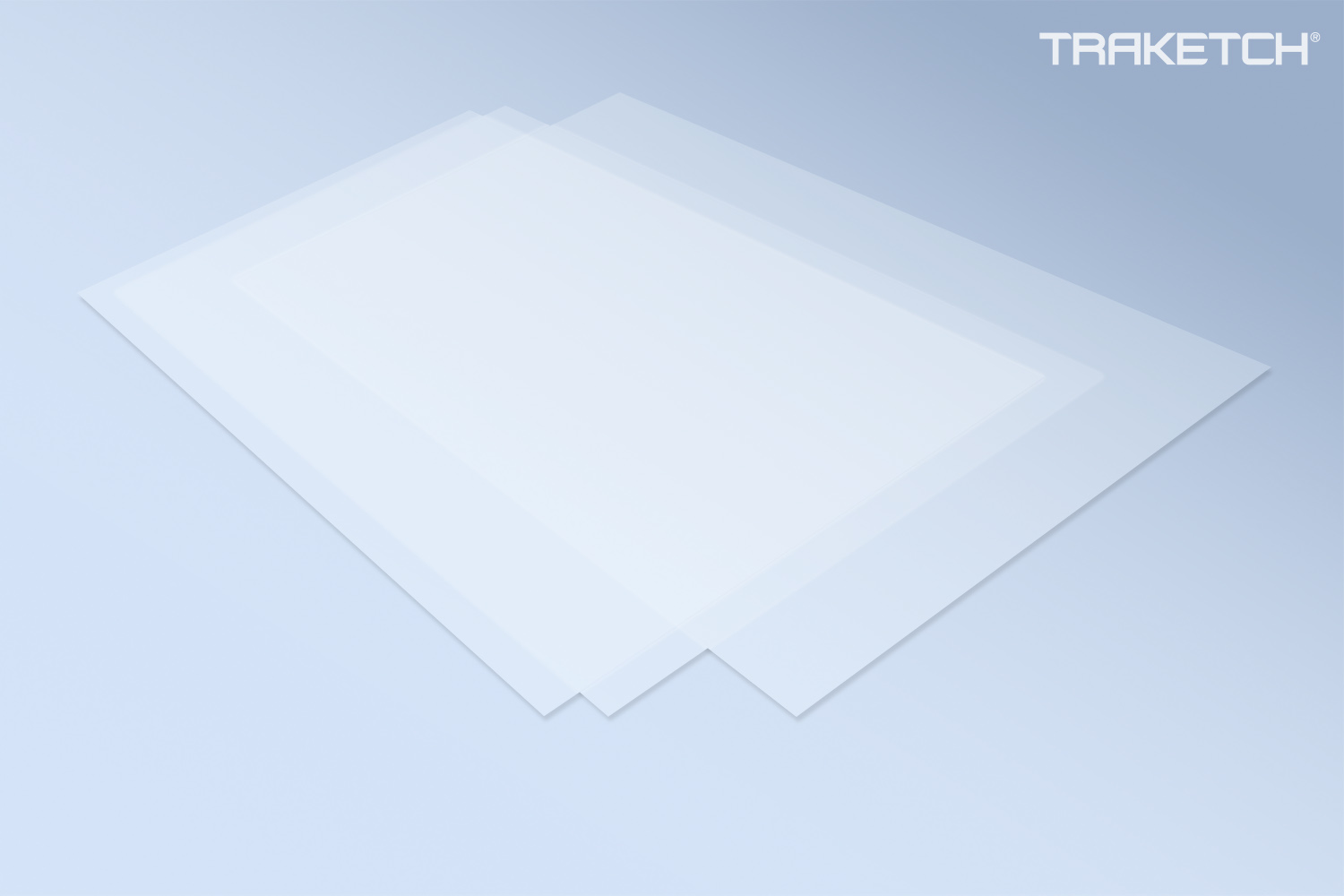

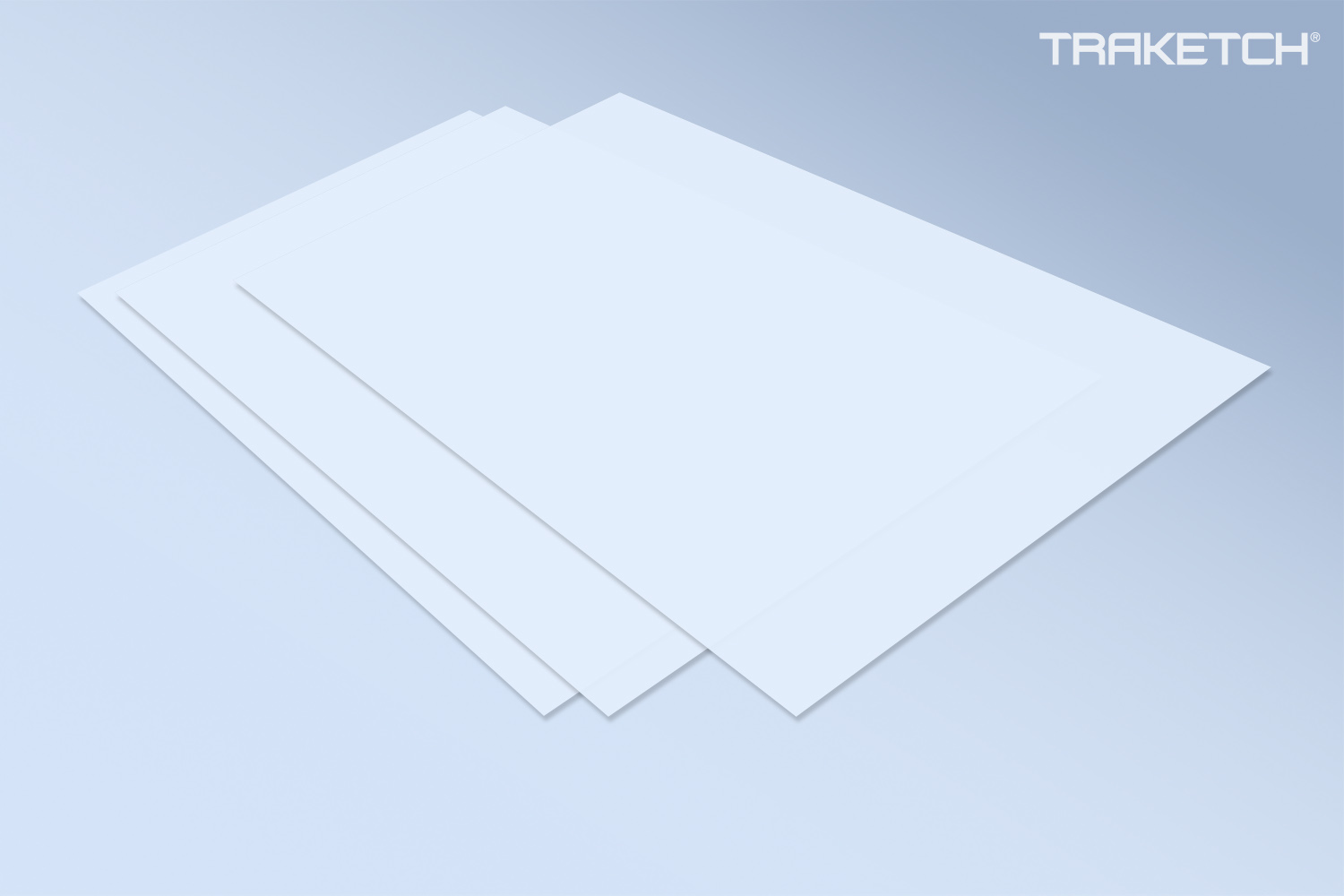

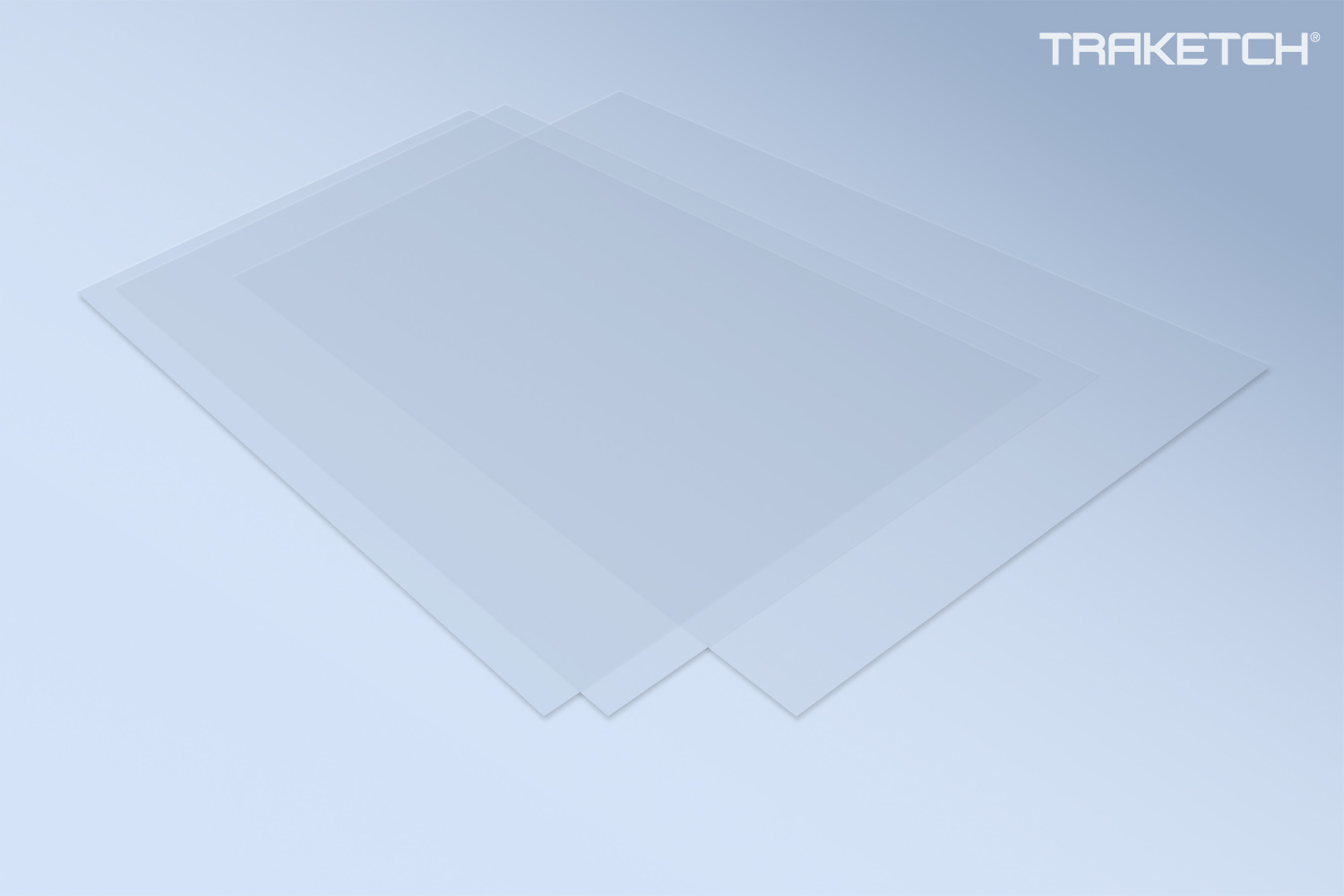

Membrane
Sheets
Sheets as test samples are ideal for semi-automated and manual production steps.
Membrane
Rolls
Rolls include the opportunity to process our membranes directly in your production process.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Self-adhesive Membrane Pads (adhesiveVENTpads)
Our adhesiveVENTpads are Membrane Discs equipped with an adhesive ring in various sizes with hydrophobic and oleophobic properties. They are supplied on rolls and are all PFOA- and PFCA-free, of course.
Below you will find the most common membrane variants, further information on specifications and conformity, your product benefits and a selection of application examples. Read more >
Specifications & conformities
| Chemical restistance: | Go to > |
|---|---|
| Temperature resistance: | PET with modified adhesive up to 110 °C PET, PET-non-woven-supported with modified adhesive up to 110 °C These information refer to the respective materials. The functions must be approved for each application itself. |
| Sealing compatibility: | Go to > |
| IP-protection class suitability: | Yes |
All product data given on this website represent typical values.
Benefits
- Available in several standard sizes
- Safe pressure compensation, steady airflow and continuous venting
- Reliable protection against environmental effects like moisture and foreign particles
- Easy integration into products (including existing products)
- Self-adhesive membrane pads can be installed either inside or outside the component and have minimal space requirements
- Can be applied manually, semi-automatically, or fully automatically
- Excellent adhesion on smooth surfaces – especially to plastic, aluminum, and steel
- Individually customizable (e.g. formats and adhesive types)
- Narrow tolerances of the membrane parameters
- Water and oil repellent surface (hydrophobic/oleophobic)
- Suitable for IP protection classes
- PFOA/PFCA-free (confirmed by accredited test laboratories)
- Production under clean room conditions in accordance with ISO class 8
- Certified according to DIN EN ISO 9001 & 13485
Show products : Self-adhesive Membrane Pads
adhesiveVENTpad
Ø 5.0 / 2.0 mm
0.4 µm PET
Item Number: 090065
Material: unsupported Polyester (PET)
Membrane with modified adhesive
Pore size: 0.4 µm
Backing: None
Membrane thickness: 36 µm
Filter area: 0.03 cm2
Air flow rate: 7.0 L /(min cm2 bar)
WEP: 1.8 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 7,000 Pads
adhesiveVENTpad
Ø 7.0 / 3.0 mm
0.4 µm PET
Item Number: 090067
Material: unsupported Polyester (PET)
Membrane with modified adhesive
Pore size: 0.4 µm
Backing: None
Membrane thickness: 36 µm
Filter area: 0.07 cm2
Air flow rate: 7.0 L /(min cm2 bar)
WEP: 1.8 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 5,000 Pads
adhesiveVENTpad
Ø 7.5 / 3.0 mm
1.0 µm PET
Item Number: 090056
Material: unsupported Polyester (PET)
Membrane with modified adhesive
Pore size: 1.0 µm
Backing: None
Membrane thickness: 35 µm
Filter area: 0.07 cm2
Air flow rate: 20 L /(min cm2 bar)
WEP: 0.6 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 5,000 Pads
Upon request
adhesiveVENTpad
Ø 8.0 / 4.0 mm
0.4 µm PET
Item Number: 090071
Material: unsupported Polyester (PET)
Membrane with modified adhesive
Pore size: 0.4 µm
Backing: None
Membrane thickness: 36 µm
Filter area: 0.13 cm2
Air flow rate: 7.0 L /(min cm2 bar)
WEP: 1.8 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 5,000 Pads
adhesiveVENTpad
Ø 8.0 / 4.0 mm
1.0 µm PET
Item Number: 090020
Material: unsupported Polyester (PET)
Membrane with modified adhesive
Pore size: 1.0 µm
Backing: None
Membrane thickness: 35 µm
Filter area: 0.13 cm2
Air flow rate: 20 L /(min cm2 bar)
WEP: 0.6 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 5,000 Pads
adhesiveVENTpad
Ø 10.0 / 5.5 mm
0.4 µm PET
Item Number: 090068
Material: unsupported Polyester (PET)
Membrane with modified adhesive
Pore size: 0.4 µm
Backing: None
Membrane thickness: 36 µm
Filter area: 0.24 cm2
Air flow rate: 7.0 L /(min cm2 bar)
WEP: 1.8 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 4,000 Pads
adhesiveVENTpad
Ø 12.7 / 7.1 mm
0.4 µm PET
Item Number: 090072
Material: unsupported Polyester (PET)
Membrane with modified adhesive
Pore size: 0.4 µm
Backing: None
Membrane thickness: 36 µm
Filter area: 0.40 cm2
Air flow rate: 7.0 L /(min cm2 bar)
WEP: 1.8 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 3,000 Pads
adhesiveVENTpad
Ø 12.7 / 7.1 mm
1.0 µm PET/PET
Item Number: 090064
Material: Supported Polyester (PET)
Membrane with modified adhesive
Pore size: 1.0 µm
Backing: PET-non-woven
Membrane thickness: 140 µm
Filter area: 0.40 cm2
Air flow rate: 26 L /(min cm2 bar)
WEP: 0.6 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 3,000 Pads
adhesiveVENTpad
Ø 14.0 / 8.0 mm
0.4 µm PET
Item Number: 090069
Material: unsupported Polyester (PET)
Membrane with modified adhesive
Pore size: 0.4 µm
Backing: None
Membrane thickness: 36 µm
Filter area: 0.50 cm2
Air flow rate: 7.0 L /(min cm2 bar)
WEP: 1.8 bar
Surface: hydrophobic & oleophobic
Minimum order quantity: 1,000 Pads
Quantity per roll: 3,000 Pads
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Membrane Discs
TRAKETCH® Membranes are also available as pre-assembled Discs in the standardized diameters Ø 25 and 47 mm in various thicknesses for different applications. All our products are PFOA- and PFCA-free, of course. Discs are also available with hydrophobic and oleophobic properties and in other formats upon request.
Below you will find the most common membrane variants, further information on specifications and conformity, your product benefits and a selection of application examples. Read more >
Specifications & conformities
| Chemical resistance: | Go to > |
|---|---|
| Temperature resistance: | PET unsupported up to 150 °C PET, PET-non-woven-supported up to 140 °C These information refer to the respective materials.The functions must be approved for each application itself. |
| Sealing compatibility: | Go to > |
| Sterilization compatibility: | Autoclave, E-Beam, EtO, Gamma |
| USP Class VI testing: | Approved |
| pH-range: | 3 – 7 |
| IP protection class suitability: | Yes (for hydrophobic and oleophobic membranes) |
All product data given on this website represent typical values.
Benefits
- PFOA- and PFCA-free
- Available in various thicknesses and therefore optimized for your application
- RNase/DNase-free
- Pyrogen-free
- FDA- and EU food compliant
- Tight tolerances for membrane parameters
- 100% inline quality control
- Industry-leading quality standards to ensure 100% consistency of membrane parameters for your safe and reproducible test results
- Certified according to DIN EN ISO 9001 & DIN EN 13485
- Manufactured under clean room conditions in accordance with ISO class 8
Hydrophilic
- Tissue culture treated
Hydrophobic & Oleophobic
- Reliable protection against environmental influences such as foreign particles, splash water and other liquids
- Reliable pressure compensation and continuous venting
- Uniform air flow
- Suitable for IP protection classes
Hydrophilic Membrane Discs with 11 µm thickness
Our hydrophilic PET membranes with a thickness of 11 µm and short pore channels for faster nutrient supply are ideal for cell culture applications.
Show products : Membrane Discs Ø 25 mm PET (11 µm thickness)

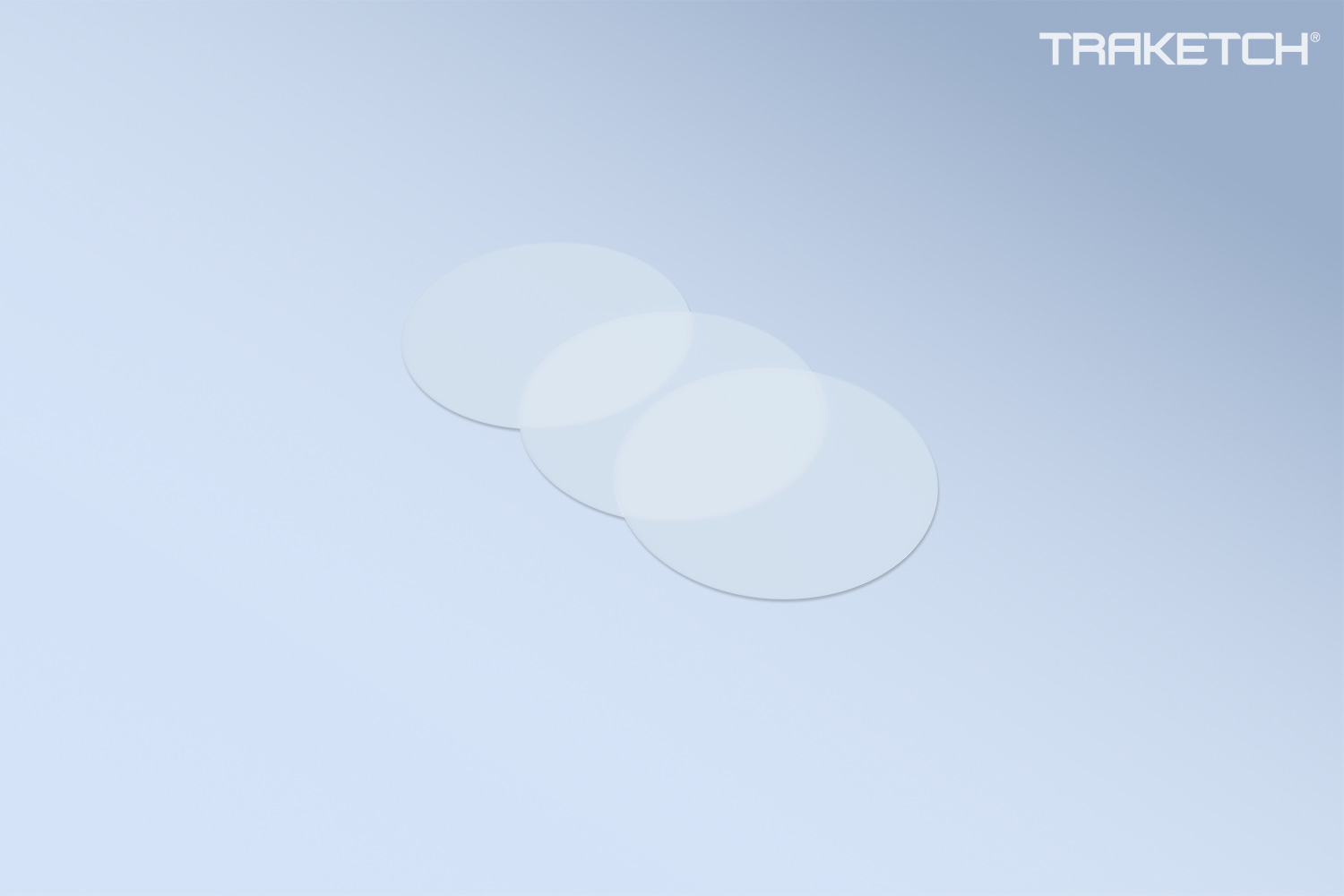

Membrane Disc Ø 25 mm
0.1 µm PET translucent
Item Number: 093251
Pore size: 0.1 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 1.0 × 109 pores per cm2
Surface: tissue culture treated
159.00 € / Box
Quantity per box: 100 Discs (1.59 € / Disc)
Price request for larger quantities>
In stock
Membrane Disc Ø 25 mm
0.2 µm PET translucent
Item Number: 093281
Pore size: 0.2 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 3.2 × 108 pores per cm2
Surface: tissue culture treated
86.00 € / Box
Quantity per box: 100 Discs (0.86 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
0.4 µm PET translucent
Item Number: 093051
Pore size: 0.4 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 1.0 × 108 pores per cm2
Surface: tissue culture treated
86.00 € / Box
Quantity per box: 100 Discs (0.86 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
0.4 µm PET clear
Item Number: 093681
Pore size: 0.4 µm
Thickness: 12 µm
Optics: clear
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
93.00 € / Box
Quantity per box: 100 Ronden (0.93 € / Ronde)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
0.4 µm PET translucent
Item Number: 093021
Pore size: 1.0 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
93.00 € / Box
Quantity per box: 100 Discs (0.93 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
1.0 µm PET clear
Item Number: 093691
Pore size: 1.0 µm
Thickness: 12 µm
Optics: clear
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
99.00 € / Box
Quantity per box: 100 Discs (0.99 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
3.0 µm PET translucent
Item Number: 093031
Pore size: 3.0 µm
Thickness: 9 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
93.00 € / Box
Quantity per box: 100 Discs (0.93 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
3.0 µm PET clear
Item Number: 093441
Pore size: 3.0 µm
Thickness: 10 µm
Optics: clear
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
99.00 € / Box
Quantity per box: 100 Discs (0.99 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
0.1 µm PET translucent
Item Number: 093371
Pore size: 5.0 µm
Thickness: 10 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
93.00 € / Box
Quantity per box: 100 Discs (0.93 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
5.0 µm PET clear
Item Number: 093451
Pore size: 5.0 µm
Thickness: 10 µm
Optics: clear
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
99.00 € / Box
Quantity per box: 100 Discs (0.99 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
8.0 µm PET translucent
Item Number: 093361
Pore size: 8.0 µm
Thickness: 11 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 2.0 × 105 Pores per cm2
Surface: tissue culture treated
93.00 € / Box
Quantity per box: 100 Discs (0.93 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
8.0 µm PET clear
Item Number: 093421
Pore size: 8.0 µm
Thickness: 11 µm
Optics: clear
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Poren density: 1.0 × 104 Pores per cm2
Surface: tissue culture treated
99.00 € / Box
Quantity per box: 100 Discs (0.99 € / Disc)
Price request for larger quantities >
In stock
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Show products : Membrane Discs Ø 47 mm PET (11 µm thickness)
Membrane Disc Ø 47 mm
0.1 µm PET translucent
Item Number: 094251
Pore size: 0.1 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 1.0 × 109 Pores per cm2
Surface: tissue culture treated
259.00 € / Box
Quantity per box: 100 Discs (2.59 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
0.2 µm PET translucent
Item Number: 094281
Pore size: 0.2 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 3.2 × 108 Pores per cm2
Surface: tissue culture treated
139.00 € / Box
Quantity per box: 100 Discs (1.39 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
0.4 µm PET translucent
Item Number: 094051
Pore size: 0.4 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 1.0 × 108 Pores per cm2
Surface: tissue culture treated
139.00 € / Box
Size per box: 100 Discs (1.39 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
0.4 µm PET clear
Item Number: 094681
Pore size: 0.4 µm
Thickness: 12 µm
Optics: clear
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
149.00 € / Box
Quantity per box: 100 Discs (1.49 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
1.0 µm PET translucent
Item Number: 094021
Pore size: 1.0 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
149.00 € / Box
Quantity per box: 100 Discs (1.49 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
1.0 µm PET clear
Item Number: 094691
Pore size: 1.0 µm
Thickness: 11 µm
Optics: clear
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
159.00 € / Box
Quantity per box: 100 Discs (1.59 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
3.0 µm PET translucent
Item Number: 094 034
Pore size: 3.0 µm
Thickness: 9 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
149.00 € / Box
Quantity per box: 100 Discs (1.49 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
3.0 µm PET clear
Item Number: 094441
Pore size: 3.0 µm
Thickness: 10 µm
Optics: clear
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
159.00 € / Box
Quantity per box: 100 Discs (1.59 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
5.0 µm PET translucent
Item Number: 094371
Pore size: 5.0 µm
Thickness: 10 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
149.00 € / Box
Quantity per box: 100 Discs (1.49 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
5.0 µm PET clear
Item Number: 094451
Pore size: 5.0 µm
Thickness: 10 µm
Optics: clear
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
159.00 € / Box
Quantity per box: 100 Discs (1.59 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
8.0 µm PET translucent
Item Number: 094361
Pore size: 8.0 µm
Thickness: 11 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 2.0 × 105 Pores per cm2
Surface: tissue culture treated
149.00 € / Box
Quantity per box: 100 Discs (1.49 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
8.0 µm PET clear
Item Number: 094421
Pore size: 8.0 µm
Thickness: 11 µm
Optics: clear
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 1.0 × 104 Pores per cm2
Surface: tissue culture treated
159.00 € / Box
Quantity per box: 100 Discs (1.59 € / Disc)
Price request for larger quantities >
In stock
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Hydrophilic Membrane Discs with 22 µm thickness
Our hydrophilic PET membranes with a thickness of 22 µm are somewhat more stable and are therefore often used in laboratory filtration.
Show products : Membrane Discs Ø 25 mm PET (22 µm thickness)
Membrane Disc Ø 25 mm
0.2 µm PET translucent
Item Number: 093391
Pore size: 0.2 µm
Thickness: 23 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Poren density: 3.2 × 108 Pores per cm2
Surface: tissue culture treated
86.00 € / Box
Quantity per box: 100 Discs (0.86 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
0.2 µm PET translucent
Item Number: 093091
Pore size: 0.4 µm
Thickness: 23 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 1.0 × 108 Pores per cm2
Surface: tissue culture treated
86.00 € / Box
Quantity per box: 100 Discs (0.86 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
0.8 µm PET translucent
Item Number: 093081
Pore size: 0.8 µm
Thickness: 22 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 5.0 × 107 Pores per cm2
Surface: tissue culture treated
86.00 € / Box
Quantity per box: 100 Discs (0.86 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 25 mm
1.0 µm PET translucent
Item Number: 093071
Pore size: 1.0 µm
Thickness: 22 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 25 mm
Filter area: 1.1 cm2
Pore density: 2.2 × 107 Pores per cm2
Surface: tissue culture treated
93.00 € / Box
Quantity per box: 100 Discs (0.93 € / Disc)
Price request for larger quantities >
In stock
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Show products : Membrane Discs Ø 47 mm PET (22 µm thickness)
Membrane Disc Ø 47 mm
0.2 µm PET translucent
Item Number: 094391
Pore size: 0.2 µm
Thickness: 23 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 3.2 × 108 Pores per cm2
Surface: tissue culture treated
139.00 € / Box
Quantity per box: 100 Discs (1.39 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
0.4 µm PET translucent
Item Number: 094091
Pore size: 0.4 µm
Thickness: 23 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 1.0 × 108 Pores per cm2
Surface: tissue culture treated
139.00 € / Box
Quantity per box: 100 Discs (1.39 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
0.8 µm PET translucent
Item Number: 094081
Pore size: 0.8 µm
Thickness: 22 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore density: 5.0 × 107 Pores per cm2
Surface: tissue culture treated
139.00 € / Box
Quantity per box: 100 Discs (1.39 € / Disc)
Price request for larger quantities >
In stock
Membrane Disc Ø 47 mm
1.0 µm PET translucent
Item Number: 094071
Pore size: 1.0 µm
Thickness: 22 µm
Optics: translucent
Membrane: PET
Format: Disc Ø 47 mm
Filter area: 4.5 cm2
Pore denssity: 2.2 × 107 Pores per cm2
Surface: tissue culture treated
149.00 € / Box
Quantity per box: 100 Discs (1.49 € / Disc)
Price request for larger quantities >
In stock
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Membrane Sheets
Our Membranes are available in 21 × 30 cm format as Sheets with hydrophilic, hydrophobic or oleophobic surface properties and different thicknesses. All our products are of course PFOA- and PFCA-free. Sheets are also available in further formats upon request.
Below you will find the most common membrane variants, further information on specifications and conformity, your product benefits and a selection of application examples. Read more >
Specifications & conformities
| Chemical resistance: | Go to > |
|---|---|
| Temperature resistance: | PET unsupported up to 150 °C PET, PET-non-woven-supported up to 140 °C These information refer to the respective materials.The functions must be approved for each application itself. |
| Sealing compatibility: | Go to > |
| Sterilization compatibility: | Autoclave, E-Beam, EtO, Gamma |
| USP Class VI testing: | Approved |
| pH-range: | 3 – 7 |
| IP protection class suitability: | Yes (for hydrophobic and oleophobic membranes) |
All product data given on this website represent typical values.
Benefits
- PFOA- and PFCA-free
- Available in various thicknesses and therefore optimized for your application
- RNase/DNase-free
- Pyrogen-free
- FDA- and EU food compliant
- Tight tolerances for membrane parameters
- 100% inline quality control
- Industry-leading quality standards to ensure 100% consistency of membrane parameters for your safe and reproducible test results
- Certified according to DIN EN ISO 9001 & DIN EN 13485
- Manufactured under clean room conditions in accordance with ISO class 8
Hydrophilic
- Tissue culture treated
Hydrophobic & Oleophobic
- Reliable protection against environmental influences such as foreign particles, splash water and other liquids
- Reliable pressure compensation and continuous venting
- Uniform air flow
- Suitable for IP protection classes
Hydrophilic Membrane Sheets
Our hydrophilic PET membranes with a thickness of 11 µm and short pore channels for faster nutrient supply are ideal for cell culture applications.
Our hydrophilic PET membranes with a thickness of 22 µm are somewhat more stable and are therefore often used in laboratory filtration.
Show products : Membrane Sheets 21 × 30 cm PET (11 µm thickness)
Membrane Sheet 21×30cm
0.1 µm PET translucent
Item Number: 09A254
Pore size: 0.1 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 1.0 × 109 Pores per cm2
Surface: tissue culture treated
395.00 € / Pack
Quantity per pack: 5 Sheets (79.00 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
0.2 µm PET translucent
Item Number: 09A284
Pore size: 0.2 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 3.2 × 108 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
0.4 µm PET translucent
Item Number: 09A054
Pore size: 0.4 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 1.0 × 108 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
0,4 µm PET clear
Item Number: 09A684
Pore size: 0.4 µm
Thickness: 12 µm
Optics: clear
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
269.00 € / Pack
Quantity per pack: 5 Sheets (53.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
1.0 µm PET translucent
Item Number: 09A024
Pore size: 1.0 µm
Thickness: 12 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
1.0 µm PET clear
Item Number: 09A694
Pore size: 1.0 µm
Thickness: 11 µm
Optics: clear
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
269.00 € / Pack
Quantity per pack: 5 Sheets (53.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
3.0 µm PET translucent
Item Number: 09A034
Pore size: 3.0 µm
Thickness: 9 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 2.0 × 106 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
3.0 µm PET clear
Item Number: 09A444
Pore size: 3.0 µm
Thickness: 10 µm
Optics: clear
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
269.00 € / Pack
Quantity per pack: 5 Sheets (53.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
5.0 µm PET translucent
Item Number: 09A374
Pore size: 5.0 µm
Thickness: 10 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
5.0 µm PET clear
Item Number: 09A454
Pore size: 5.0 µm
Thickness: 10 µm
Optics: clear
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 6.0 × 105 Pores per cm2
Surface: tissue culture treated
269.00 € / Pack
Quantity per pack: 5 Sheets (53.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
8.0 µm PET translucent
Item Number: 09A364
Pore size: 8.0 µm
Thickness: 11 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 2.0 × 105 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Packs (51.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
8.0 µm PET clear
Item Number: 09A424
Pore size: 8.0 µm
Thickness: 11 µm
Optics: clear
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 1.0 × 104 Pores per cm2
Surface: tissue culture treated
269.00 € / Pack
Quantity per pack: 5 Sheets (53.80 € / Sheet)
Price request for larger quantities >
In stock
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Show products : Membrane Sheets 21 × 30 cm PET (22 µm thickness)
Membrane Sheets 21×30cm
0.2 µm PET translucent
Item Number: 09A394
Pore size: 0.2 µm
Thickness: 23 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 3.2 × 108 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheets 21×30cm
0.4 µm PET translucent
Item Number: 09A094
Pore size: 0.4 µm
Thickness: 23 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 1.0 × 108 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
0.8 µm PET translucent
Item Number: 09A084
Pore size: 0.8 µm
Thickness: 22 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 5.0 × 107 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities>
In stock
Membrane Sheet 21×30cm
1.0 µm PET translucent
Item Number: 09A074
Pore size: 1.0 µm
Thickness: 22 µm
Optics: translucent
Membrane: PET
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Pore density: 2.2 × 107 Pores per cm2
Surface: tissue culture treated
259.00 € / Pack
Quantity per pack: 5 Sheets (51.80 € / Sheet)
Price request for larger quantities >
In stock
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Hydrophobic and oleophobic Membrane Sheets (VENTing)
Our hydrophobic and oleophobic PET membranes have water and oil repellent surface properties and allow simultaneous ventilation and pressure compensation in both directions. Variants with fleece reinforcement made of PET-non-woven are also part of our standard portfolio.
Show products : Membrane Sheets 21 × 30 cm PET VENT (unsupported)
Membrane Sheet 21×30cm
0.2 µm PET VENT
Item Number: 09D474
Pore size: 0.2 µm
Thickness: 36 µm
Membrane: PET
Backing: None
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 1.5 L /(min cm2 bar)
WEP: 3.5 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
0.4 µm PET VENT
Item Number: 09D304
Pore size: 0.4 µm
Thickness: 36 µm
Membrane: PET
Backing: None
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 7.0 L /(min cm2 bar)
WEP: 1.8 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
0.8 µm PET VENT
Item Number: 09D084
Pore size: 0.8 µm
Thickness: 22 µm
Membrane: PET
Backing: None
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 25 L /(min cm2 bar)
WEP: 1.0 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
1.0 µm PET VENT
Item Number: 09D294
Pore size: 1.0 µm
Thickness: 35 µm
Membrane: PET
Backing: None
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 20 L /(min cm2 bar)
WEP: 0.6 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
1.2 µm PET VENT
Item Number: 09D324
Pore size: 1.2 µm
Thickness: 22 µm
Membrane: PET
Backing: None
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 63 L /(min cm2 bar)
WEP: 0.6 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Show products : Membrane Sheets 21 × 30 cm PET/PET VENT (Non-woven-supported)
Membrane Sheet 21×30cm
0.2 µm PET/PET VENT
Item Number: 09E394
Pore size: 0.2 µm
Thickness: 140 µm
Membrane: PET
Backing: PET non-woven
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 3.7 L /(min cm2 bar)
WEP: 3.5 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
0.4 µm PET/PET VENT
Item Number: 09E094
Pore size: 0.4 µm
Thickness: 140 µm
Membrane: PET
Backing: PET non-woven
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 7.5 L /(min cm2 bar)
WEP: 1.8 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
0.8 µm PET/PET VENT
Item Number: 09E084
Pore size: 0.8 µm
Thickness: 140 µm
Membrane: PET
Backing: PET non-woven
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 19 L /(min cm2 bar)
WEP: 1.0 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
Membrane Sheet 21×30cm
1.0 µm PET/PET VENT
Item Number: 09E074
Pore size: 1.0 µm
Thickness: 140 µm
Membrane: PET
Backing: PET non-woven
Format: Sheet 21 × 30 cm
Filter area: 630 cm2
Air flow rate: 26 L /(min cm2 bar)
WEP: 0.6 bar
Surface: hydrophobic & oleophobic
345.00 € / Pack
Quantity per pack: 5 Sheets (69.00 € / Sheet)
Price request for larger quantities >
In stock
All product data given on this website represent typical values.
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Membrane Rolls
We offer all our Membranes on request as Rolls in a width from 12.5 to 300 mm which are PFOA- and PFCA-free, of course. Please also read about our customization options and feel free to contact us at any time.
Below you will find further information on your product benefits and a selection of application examples. Read more >
Further information on specifications and conformities can be found in the section of options for customization.
Benefits
- PFOA- and PFCA-free
- Available in various thicknesses and therefore optimized for your application
- RNase/DNase-free
- Pyrogen-free
- FDA- and EU food compliant
- Tight tolerances for membrane parameters
- 100% inline quality control
- Industry-leading quality standards to ensure 100% consistency of membrane parameters for your safe and reproducible test results
- Certified according to DIN EN ISO 9001 & DIN EN 13485
- Manufactured under clean room conditions in accordance with ISO class 8
Hydrophilic
- Tissue culture treated
Hydrophobic & Oleophobic
- Reliable protection against environmental influences such as foreign particles, splash water and other liquids
- Reliable pressure compensation and continuous venting
- Uniform air flow
- Suitable for IP protection classes
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Overview of our standard membrane variants
You would like to see the whole range of our standard membrane product variants? We'll give you an overview – just open our detailed table below:
Show products : Standard membrane variants
Hydrophilic TRAKETCH® PET Membranes (11 µm thickness)
| Pore sizes | Thickness | Pore density | Airflow | Optics | Order options |
|---|---|---|---|---|---|
| 0.1 µm | 12 µm | 1.0 × 109 pores / cm2 | 4 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 0.2 µm | 12 µm | 3.2 × 108 pores / cm2 | 4.7 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 0.4 µm | 12 µm | 1.0 × 108 pores / cm2 | 10 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 0.4 µm | 12 µm | 2.0 × 106 pores / cm2 | 0,25 L / (min cm2 bar) | clear | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 1.0 µm | 11 µm | 2.0 × 106 pores / cm2 | 4 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 1.0 µm | 11 µm | 2.0 × 106 pores / cm2 | 4 L / (min cm2 bar) | clear | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 3.0 µm | 9 µm | 2.0 × 106 pores / cm2 | 130 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 3.0 µm | 10 µm | 6.0 × 105 pores / cm2 | 21 L / (min cm2 bar) | clear | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 5.0 µm | 10 µm | 6.0 × 105 pores / cm2 | 230 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 5.0 µm | 10 µm | 6.0 × 105 pores / cm2 | 230 L / (min cm2 bar) | clear | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 8.0 µm | 11 µm | 2.0 × 105 pores / cm2 | 310 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 8.0 µm | 11 µm | 1.0 × 105 pores / cm2 | 150 L / (min cm2 bar) | clear | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
All product data given on this website represent typical values.
Hydrophilic TRAKETCH® PET Membranes (22 µm thickness)
| Poresize | Thickness | Pore density | Air flow rate | Optics | Order options |
|---|---|---|---|---|---|
| 0.2 µm | 23 µm | 3.2 × 108 pores / cm2 | 4.5 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 0.4 µm | 23 µm | 1.0 × 108 pores / cm2 | 9 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 0.8 µm | 22 µm | 5.0 × 107 pores / cm2 | 27 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
| 1.0 µm | 22 µm | 2.2 × 107 pores / cm2 | 36 L / (min cm2 bar) | translucent | Membrane Discs in various diameters > Membrane Sheets in various sizes > |
All product data given on this website represent typical values.
Hydrophobic & oleophobic TRAKETCH® PET VENT Membranes (unsupported)
| Pore size | Thickness | Pore density | Air flow rate | WEP | Order options |
|---|---|---|---|---|---|
| 0.2 µm | 36 µm | 1.5 × 108 pores / cm2 | 1.5 L / (min cm2 bar) | 3.5 bar | Membrane Sheets in various sizes > |
| 0.4 µm | 36 µm | 5.0 × 107 pores / cm2 | 7 L / (min cm2 bar) | 1.8 bar | Membrane Sheets in various sizes > |
| 0.8 µm | 22 µm | 5.0 × 107 pores / cm2 | 25 L / (min cm2 bar) | 1.0 bar | Membrane Sheets in various sizes > |
| 1.0 µm | 35 µm | 1.5 × 107 pores / cm2 | 20 L / (min cm2 bar) | 0.6 bar | Membrane Sheets in various sizes > |
| 1.2 µm | 22 µm | 5.0 × 107 pores / cm2 | 63 L / (min cm2 bar) | 1.0 bar | Membrane Sheets in various sizes > |
All product data given on this website represent typical values.
Hydrophobic & oleophobic TRAKETCH® PET/PET VENT Membranes (Non-woven-supported)
| Pore size | Thickness | Pore density | Air flow rate | WEP | Order options |
|---|---|---|---|---|---|
| 0.2 µm | 140 µm | 3.2 × 108 pores / cm2 | 3.7 L / (min cm2 bar) | 3.5 bar | Membrane Sheets in various sizes > |
| 0.4 µm | 140 µm | 1.0 × 108 pores / cm2 | 7.5 L / (min cm2 bar) | 1.8 bar | Membrane Sheets in various sizes > |
| 0.8 µm | 140 µm | 1.5 × 107 pores / cm2 | 19 L / (min cm2 bar) | 0.6 bar | Membrane Sheets in various sizes > |
| 1.0 µm | 140 µm | 2.2 × 107 pores / cm2 | 26 L / (min cm2 bar) | 0.6 bar | Membrane Sheets in various sizes > |
All product data given on this website represent typical values.
Hydrophobic & oleophobic TRAKETCH® Self-adhesive Membrane Pads PET (unsuopported or non-woven-supported)
| Pore size | Thickness / with modified adhesive | Pore density | Air flow rate | WEP | Order options |
|---|---|---|---|---|---|
| 0.4 µm | 36 µm / 300 µm | 5.0 × 107 pores / cm2 | 7 L / (min cm2 bar) | 1.8 bar | Self-adhesive Membrane Pads in various diameters > |
| 1.0 µm | 35 µm / 300 mm | 1.5 × 107 pores / cm2 | 20 L / (min cm2 bar) | 0.6 bar | Self-adhesive Membrane Pads in various diameters > |
| 1.0 µm | 140 µm / 400 mm | 2.2 × 107 pores / cm2 | 26 L / (min cm2 bar) | 0.6 bar | Self-adhesive Membrane Pads in various diameters > |
All product data given on this website represent typical values.
All our other membrane product solutions for cell culture and packaging are combined in our own brands separately – click here to continue:
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Application examples
Please discover a selection of product recommendations for a wide range of applications below. We will be happy to provide you with individual advice on other possible applications and customized solutions at any time!
Life Sciences & Medical
Hydrophobic & oleophobic
| Application | Pore size |
|---|---|
| Sterile Venting of | |
| Suction containers: | 0.2 µm |
| Diagnostic devices: | 0.2 µm |
| Insulin pumps: | 0.2 – 1.0 µm |
| Hospital beds: | 0.2 – 1.0 µm |
| Neurostimulators: | 0.2 – 1.0 µm |
| Sterilization boxes: | 0.2 µm |
| Ostomy bags: | 0.2 µm |
| Transducer protectors: | 0.2 µm |
| Drip chambers: | 0.2 µm |
| Urin bags: | 0.2 µm |
| Cell culture containers: | 0.2 µm |
Hydrophilic
| Application | Pore size |
|---|---|
| Cancer cells (RCC): | 5.0 - 8.0 µm |
| Artificial organs: | 0.08 µm |
| Legionella test: | 0.2 – 0.4 µm |
| Pap test: | 5.0 – 8.0 µm |
| Particle analysis: | 0.2 – 0.8 µm |
| Sterile laboratory filtration: | 0.2 µm |
| Cell and gene therapy: | 0.4 µm |
| Cell culture: Application advisor for Cell Culture Inserts / Plates: | 0.2 – 8.0 µm cellQART® Online Advisor > |
Industrial
Hydrophobic & oleophobic
- Mobile electronics
- Automotive & outdoor electronics
- Lighting technology
- Sensors & measurement technology
- Battery technology & eMobility
- Control technology
- Acoustics & optoelectronics
- Electronic medical technology
Hydrophilic
- Filtration technology
- Environmental analysis
- Measurement analytics
- Air humidification
Packaging
Hydrophobic & oleophobic
- Liquid foods
- Hazardous substances and other chemicals
- Agrochemicals
- Cleaners
- Hygiene and care products
Product found? Order now >
Your product not yet included? Customization options >
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Customized TRAKETCH® product solutions
Do you require membrane products beyond our standard product portfolio? As the manufacturer of filter membranes and plastic components, we can develop a solution specifically for your requirements.
Below you will find a selection of your options for customization:
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
| Materials: | Polyester (PET), Polytetrafluorethylene (PTFE) |
|---|---|
| Non-woven-support: | PET, PP |
| Mechanical stability: | With or without non-woven-support |
| Temperature resistance: | PET unsupported up to 150 °C PET, PET-non-woven-supported up to 140 °C PET, PP-non-woven-supported up to 100 °C PET as adhesiveVENTpad up to 110 °C PET, PET-non-woven-supported as adhesiveVENTpad up to 110 °C PTFE, PET-non-woven-supported up to 140 °C PTFE, PP-non-woven-supportet up to 100 °C These information refer to the respective materials. The functions must be approved for each application itself. |
| USP Class VI testing: | Approved |
| pH-range: | 1 – 14 |
| Pore sizes: | 0.08 µm – 20 µm |
|---|---|
| Pore densities: | 1.0 × 104 – 5.0 × 109 pores per cm2 |
| Membrane thickness: | 8 µm – 200 µm |
| Airflow with hydrophobic & oleophobic membranes: | up to 50 L / (min cm2 bar) |
| Water Entry Pressure / WEP with hydrophobic & oleophobic membranes: | up to 3.5 bar |
| IP-protection class suitability: | Yes (for hydrophobic and oleophobic membranes) |
| Chemichal resistance: | Go to > |
| Sealing compatibility: | Go to > |
All data given on this website represent typical values and are dependent on types.
Surface properties
Hydrophilic
TC treated
Hydrophobic
Oleophobic
Compatibility to sterilization
Autoclave
E-Beam
EtO
Gamma
Colors
White /
Translucent
Clear /
Transparent
Gold
upon request
Titanium
upon request
Customization
| Roll width: | 12.5 mm – 300 mm |
|---|---|
| Sheet sizes: | 210 × 300 mm (DIN A4), 200 × 250 mm (8 × 10"), further sizes up to a with of 300 mm upon request |
| Disc diameters: | 13 mm (½"), 25 mm (1"), 37 mm, 47 mm, 90 mm (3 ½"), 293 mm (11 ½"), further diameters upon request |
| Self-adhesive Membrane Pad diameters: | 5/2 to 14/8 mm (Ø Outer / Ø Inner), further diameters upon request |
All data given on this website represent typical values and are dependent on types.
Do you need more information about our expertise in the field of filter membranes & plastic components? Find out everything you need to know about how SABEU – Plastics & Membrane Technology can work with you to develop your customized product. We look forward to the co-operation with our specialist departments!
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Certifications and conformities
FDA conformity
EU food conformity
USP Class VI bio compatible
ISO Class 8 clean room manufacturing
Contact person and product orders
Your contact person
Kevin Eckert
Head of FLUXX
Packaging & Industrial
Your contact person
Jennifer Hughes
Sales Lead Americas
