Membrane Rolls

In widths from 12.5 to 300 mm upon request

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

We offer all our Membranes on request as Rolls in a width from 12.5 to 300 mm which are PFOA- and PFCA-free, of course. Please also read about our customization options and feel free to contact us at any time.

Below you will find further information on your product benefits and a selection of application examples. Read more >

Further information on specifications and conformities can be found in the section of options for customization.

Benefits

  • PFOA- and PFCA-free
  • Available in various thicknesses and therefore optimized for your application
  • RNase/DNase-free
  • Pyrogen-free
  • FDA- and EU food compliant
  • Tight tolerances for membrane parameters
  • 100% inline quality control
  • Industry-leading quality standards to ensure 100% consistency of membrane parameters for your safe and reproducible test results
  • Certified according to DIN EN ISO 9001 & DIN EN 13485
  • Manufactured under clean room conditions in accordance with ISO class 8

Hydrophilic

  • Tissue culture treated

Hydrophobic & Oleophobic

  • Reliable protection against environmental influences such as foreign particles, splash water and other liquids
  • Reliable pressure compensation and continuous venting
  • Uniform air flow
  • Suitable for IP protection classes

Product found? Order now

Your product not yet included? Customization options

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

Application examples

Please discover a selection of product recommendations for a wide range of applications below. We will be happy to provide you with individual advice on other possible applications and customized solutions at any time!

Life Sciences & Medical

Hydrophobic & oleophobic

Application Pore size
Sterile Venting of
Suction containers: 0.2 µm
Diagnostic devices: 0.2 µm
Insulin pumps: 0.2 – 1.0 µm
Hospital beds: 0.2 – 1.0 µm
Neurostimulators: 0.2 – 1.0 µm
Sterilization boxes: 0.2 µm
Ostomy bags: 0.2 µm
Transducer protectors: 0.2 µm
Drip chambers: 0.2 µm
Urin bags: 0.2 µm
Cell culture containers: 0.2 µm

Hydrophilic

Application Pore size
Cancer cells (RCC): 5.0 - 8.0 µm
Artificial organs: 0.08 µm
Legionella test: 0.2 – 0.4 µm
Pap test: 5.0 – 8.0 µm
Particle analysis: 0.2 – 0.8 µm
Sterile laboratory filtration: 0.2 µm
Cell and gene therapy: 0.4 µm
Cell culture:
Application advisor for Cell Culture Inserts / Plates:
0.2 – 8.0 µm
cellQART® Online Advisor >


Industrial

Hydrophobic & oleophobic

  • Mobile electronics
  • Automotive & outdoor electronics
  • Lighting technology
  • Sensors & measurement technology
  • Battery technology & eMobility
  • Control technology
  • Acoustics & optoelectronics
  • Electronic medical technology

Hydrophilic

  • Filtration technology
  • Environmental analysis
  • Measurement analytics
  • Air humidification

Packaging

Hydrophobic & oleophobic

  • Liquid foods
  • Hazardous substances and other chemicals
  • Agrochemicals
  • Cleaners
  • Hygiene and care products

Product found? Order now

Your product not yet included? Customization options

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

Further standard product solutions

Discover our selection of other standard formats and further product solutions below. You will find an overview of our membrane product variants and your customization options on the overview page of our membrane product portfolio >.

Self-adhesive
Membrane Pads

Self-adhesive Membrane Pads offer the advantage of quick and simple installation even in components with limited processing space.

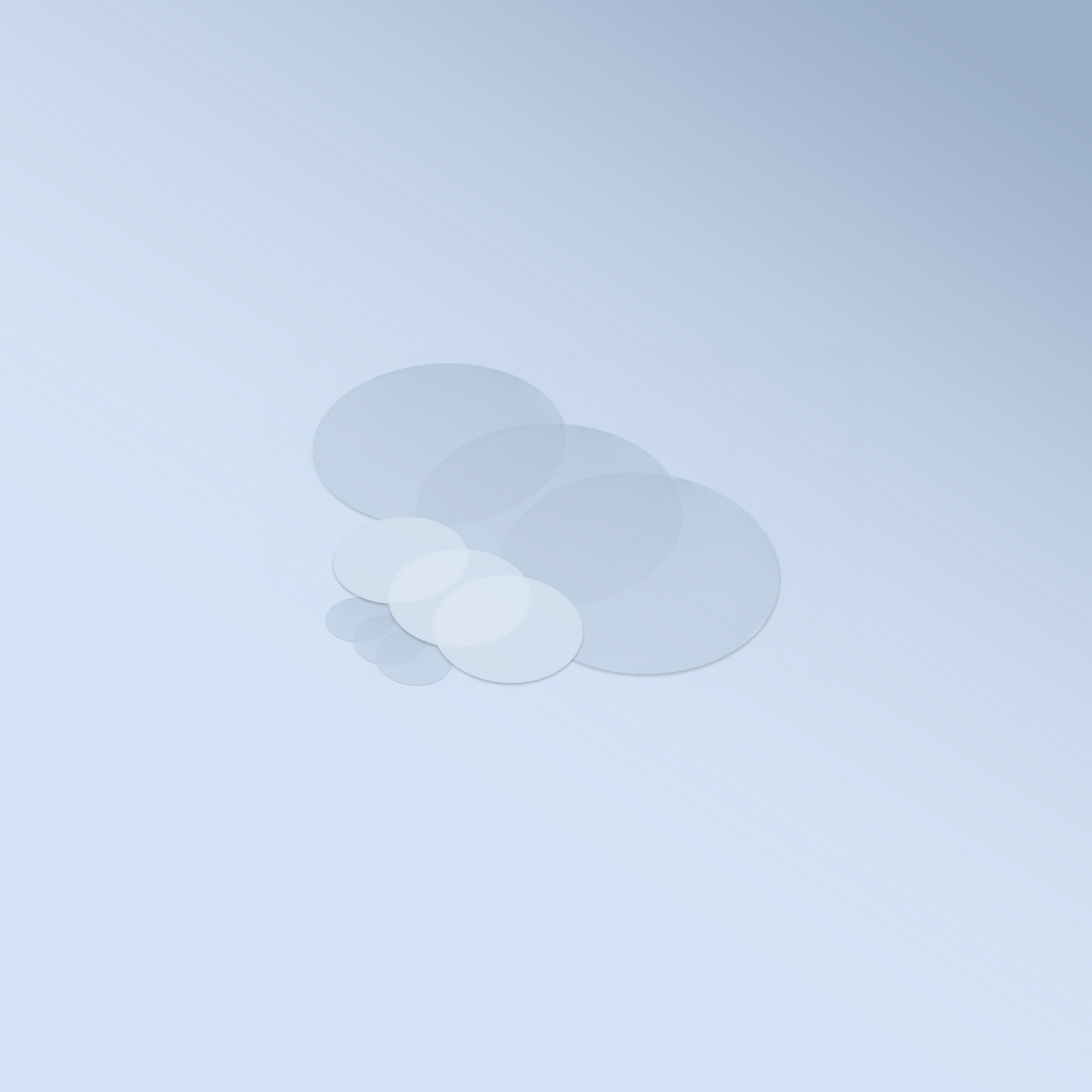

Membrane
Discs

Discs with defined diameters are already designed for immediate processing and assembly.

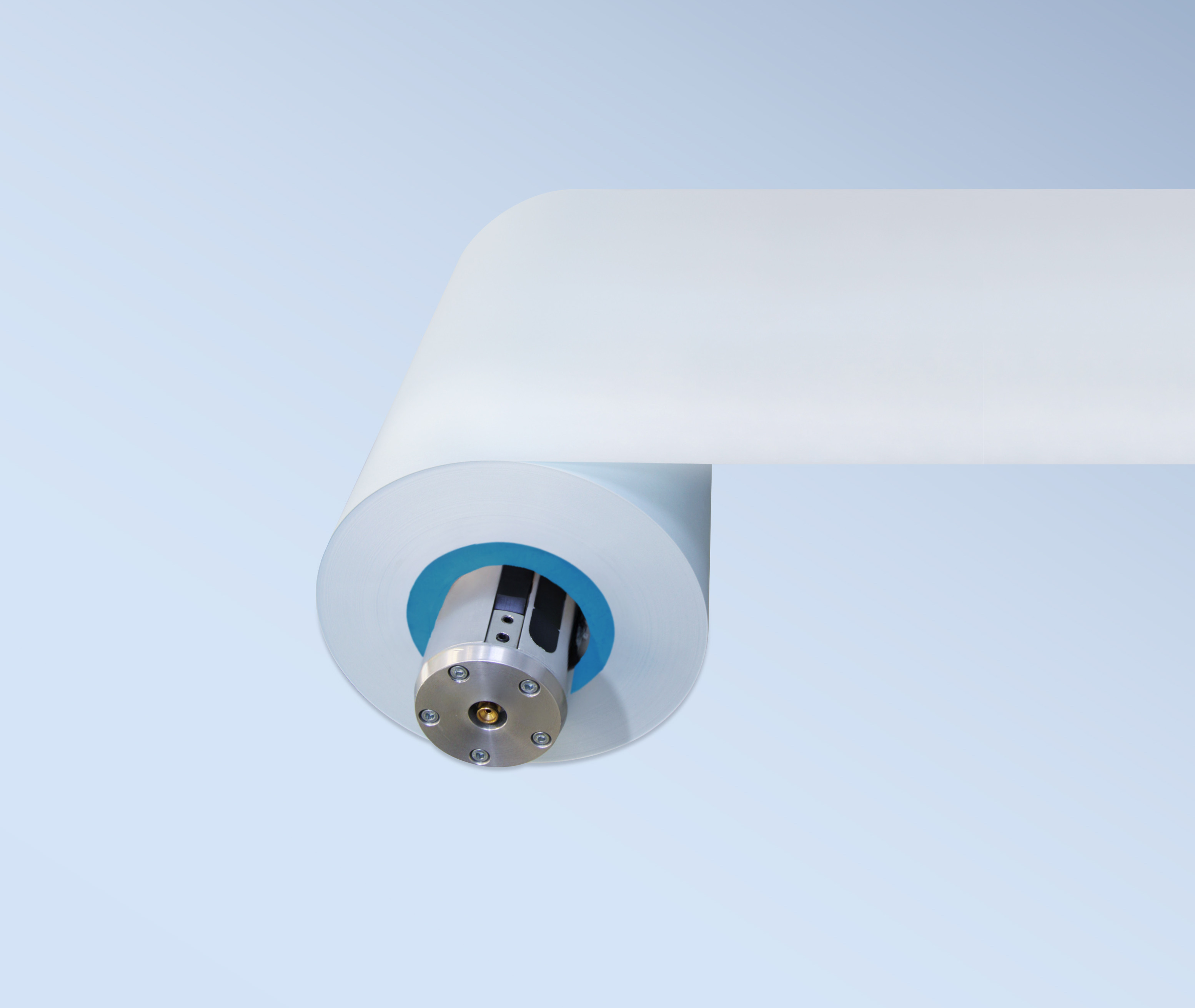

Membrane
Rolls

Rolls include the opportunity to process our membranes directly in your production process.

All our other membrane product solutions for cell culture and packaging are combined in our own brands separately – click here to continue:

Customized product solutions

Do you require membrane products beyond our standard product portfolio? As the manufacturer of filter membranes and plastic components, we can develop a solution specifically for your requirements.

Mode of operation and characteristics of our Membrane Rolls

TRAKETCH® Membrane Rolls are used as flexible and reliable filter solutions for demanding applications in sectors such as life sciences, medical technology, electronics and other industries. The Membrane Rolls are available in customized widths between 12.5 and 300 mm.

We offer a wide range of options for various configurations. In addition to hydrophilic surface properties for liquid filtration, hydrophobic and oleophobic surfaces form the basis for your use in the venting of components. Our material selection offer a high chemical resistance with PTFE and precisely adjustable pore sizes and pore densities with PET. We ensure the air flow rate and water entry pressure (WEP) required for your application by selecting the appropriate pore sizes and pore densities. They are a prerequisite for the suitability as an IP protection class.

We ensure high product quality with our clean room manufacturing. Our additional 100% in-line quality control for polyester Membrane Rolls ensures continuous reliability of all membrane parameters.

All Membrane Rolls are PFOA and PFCA free and meet FDA and EU food standards, making them particularly suitable for sensitive applications. With tight tolerances and high pore precision, these Membrane Rolls are a first-class solution for use in areas where the highest standards of purity, safety and efficiency are required.


Product found? Order now

Your product not yet included? Customization options

Your contact person

Kevin Eckert
Head of FLUXX
Packaging & Industrial

Certifications and conformities

FDA conformity

EU food conformity

USP Class VI bio compatible

ISO Class 8 clean room manufacturing
